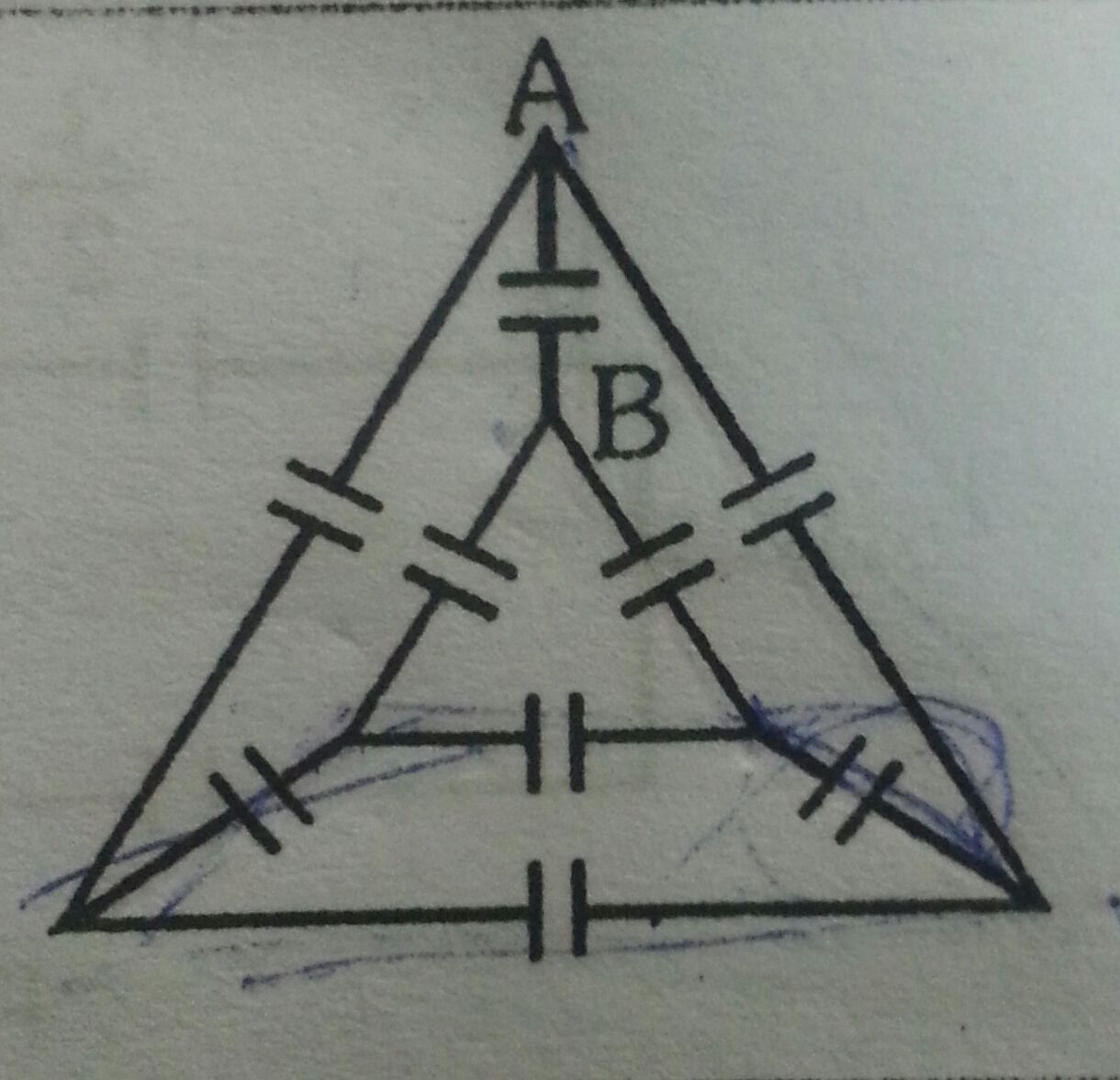

In the given combination of capacitors, all capacitors have capacitance of 1F. Find the equivalent capictance between the given points A and B. Please explain.

To find the equivalent capacitance between points A and B in a combination of capacitors, we first need to understand how capacitors can be arranged in series or parallel. Each arrangement affects the total capacitance differently. Let’s break this down step by step.

Capacitors in Series

When capacitors are connected in series, the total or equivalent capacitance (C_eq) can be calculated using the formula:

• C_eq = 1 / (1/C1 + 1/C2 + 1/C3 + ...)

This means that the reciprocal of the total capacitance is equal to the sum of the reciprocals of each individual capacitance. For example, if you have two capacitors of 1F each in series, the calculation would be:

• C_eq = 1 / (1/1 + 1/1) = 1 / (1 + 1) = 1 / 2 = 0.5F

Capacitors in Parallel

In contrast, when capacitors are connected in parallel, the total capacitance is simply the sum of the individual capacitances:

• C_eq = C1 + C2 + C3 + ...

For instance, if you have two capacitors of 1F each in parallel, the equivalent capacitance would be:

• C_eq = 1 + 1 = 2F

Analyzing the Configuration

Now, let’s apply these principles to your specific configuration of capacitors between points A and B. If you can describe how the capacitors are arranged—whether they are in series, parallel, or a combination of both—I can guide you through the calculation of the equivalent capacitance.

Example Scenario

Let’s consider a simple example where we have three capacitors of 1F each. If two capacitors are in series and one is in parallel with them, the calculation would proceed as follows:

• First, calculate the equivalent capacitance of the two capacitors in series:
• C_eq_series = 1 / (1/1 + 1/1) = 0.5F
• Next, add the parallel capacitor:
• C_eq_total = C_eq_series + C_parallel = 0.5 + 1 = 1.5F

Final Thoughts

By identifying the arrangement of the capacitors and applying the appropriate formulas, you can easily determine the equivalent capacitance between points A and B. If you have a specific configuration in mind, feel free to share it, and I can help you work through the calculations together!
