Grade 12th passElectric Current

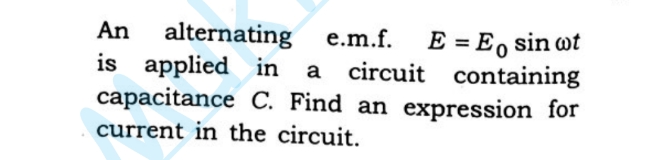

Plzz see the attachment and answer the question today
Plzz see the attachment and answer the question today
2 Answers
Saurabh Koranglekar
Dear student
The answer is
I = Io sin ( wt + 90°)
Regards
The answer is
I = Io sin ( wt + 90°)
Regards
Ayush_Deep
The value of emf is E = E° sin wt
In capacitor charge flown q= CE
Current flown = I = di/dt
I= CE° cos wt or. I= CE° sin(wt+ 90°)
