tips for solving resistor circuits

sujeesh b , 12 Years ago
Grade
anser 1 Answers
Arun Kumar
Hello

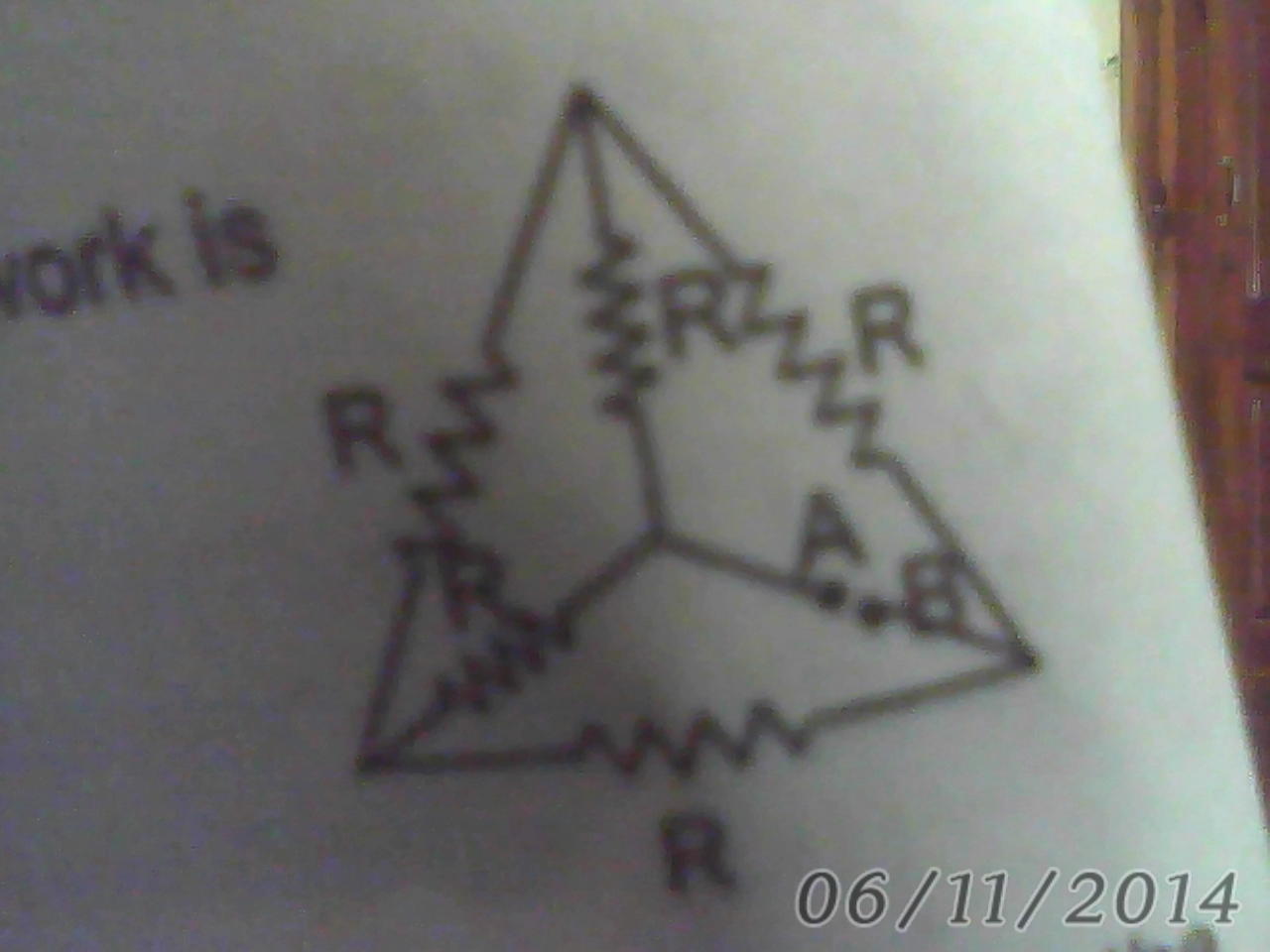

You can do this question by symmetry.
See the current won’t go through the middle standing R because current that enters two symmetric branches has to go out through the same symmetric branches so
current in middle standing R =0
=>you can remove midddle standing R
Now its just parrallel and series combination.
<$1$2>
Thanks & Regards
Arun Kumar
Btech, IIT Delhi
Askiitians Faculty
