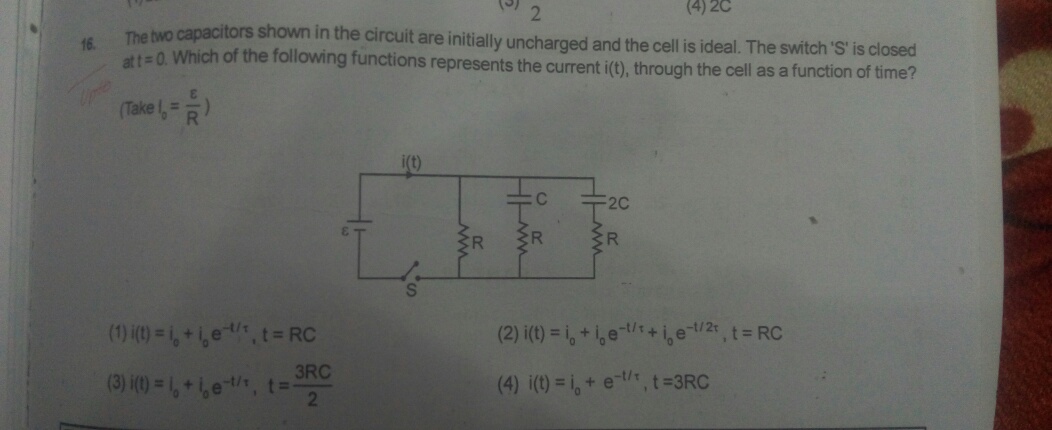

The two capacitor shown in the circuit are initially unchanged and the cell is ideal the swith is ckosed at t=0 which of the following represent the current through the cell as a function of time

The two capacitor shown in the circuit are initially unchanged and the cell is ideal the swith is ckosed at t=0 which of the following represent the current through the cell as a function of time

Question Image
Grade:11

1 Answers

Eshan
askIITians Faculty 2095 Points
5 years ago
Dear student,

Each of the vertical brach is independently connected to the cell.


For the first branch, curren drawn from battery is\dfrac{E}{R}.

For the second branch, current drawn from battery is\dfrac{E}{R}e^{-t/RC}

For the third branch, current drawn from battery is\dfrac{E}{R}e^{-t/2RC}.

From Kirchoff’s current law, total current through the battery is the sum of all three.

Hence the correct answer is option (2).
