Biology is not only about studying the external features of living organisms. Internal study is equally important.  In medical entrance examination, you will surely get a question from internal study of different parts of plant and of animal as well. Here we are going to take a look to internal structure of stem, roots & leaves.

Stemis so responsible inside! Structurally monocot & dicot stems are quite different.

Let’s do a comparative study of both.

  • Do not worry about the difficult terms. I have explained them at the end of article

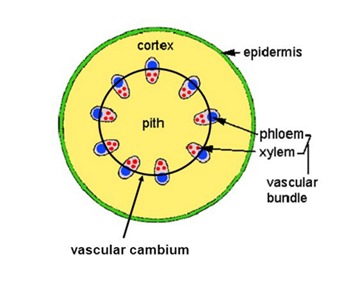

Dicot Stem

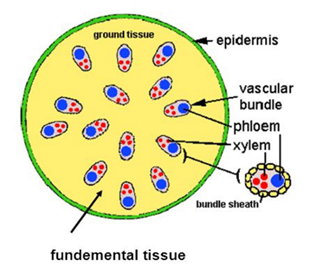

Monocot Stem

Epidermis Bears multicellular hair. Absent
Hypodermis Made up of few layers of collenchyma Scelernchymatous cells are present
Ground Tissues Cortex, endodermis, pericycle, medullary rays & pith Not differentiated
Cortex Parenchymatous & differentiated Parenchymatous & not differentiated
Vascular Bundles Arranged in ring & Wedge shaped. Numerous &dispersed with oval shape.
Secondary Growth Cambium is present (Open type )& secondary growth takes place (Except young stem) Cambium is absent (Close type) & no secondary growth
Vascular Bundle (Nature) Open, collateral, endarch, conjoint Close, collateral, endarch, conjoint
Image  12  13

Do you know the root of roots?

I think it will be easy for you to learn the comparative study of roots as well.

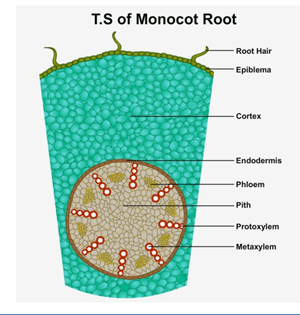

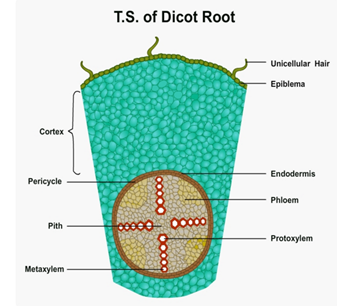

Dicot Root

Monocot Root

Ground Tissue Cortex, endodermis, Pericycle & Pith Same
Epiblema Single celled outermost layer with root hair Same
Pith Not well developed Developed with bigger area occupied
Vascular bundles No. of vascular bundles – 2 – 6Secondary growth present. No. of vascular bundles – more than 6Secondary growth absent.
Vascular bundles (Nature) Xylem bundles – exarchXylem vessels – Polygonal Xylem bundles – exarchXylem vessels – Oval
Pericycle Single layered & composed of Prosenchyma.Lateral roots & secondary meristem arise from pericycle Single layered & it is inner to endodermis. Only lateral roots arise from pericycle
Image  131  132

So Guys! Want to study the comparative study of leaves as well?

Let’s do it by telling you the detail as well.  Leaves are dorsiventral in dicots & isobilateral in monocots.

Dorsiventral leaves– To study these leaves, transverse section of mid rib in dicot leaf is studied.

The structures which are seen and studied in this leaf are:


  • Upper epidermis – Single layered with thick cuticle on outside. Cuticle protects inner parts.

Epidermis controls transpiration rate. Cells are of parenchymatous type in it & they are without chlorophyll.

  • Lower epidermis – Single layered with numerous stomata. Guard cells have chloroplast.

Stomata help in exchange of gases.

  • Mesophyll – It is the ground tissue between upper& lower epidermis. Two types of parenchymatous cells are present.
  1. Palisade Parenchyma –Long & tubular cells. 2-3 layers are present. Photosynthesis occurs in it.
  2. Spongy Parenchyma – Cells are irregular in shape. Air cavities & intercellular spaces are present in it. They also show photosynthesis.
  • Vascular Bundle – Larger towards the base of leaf blade.  Its size is smaller towards leaf apex & margin.

Isobilateral leaves – Here also, transverse section of monocot leaf (wheat, maize etc.) is studied.

Structures observed are:


  • Upper & lower epidermis – Both are single layered with stomata in it.
  • Mesophyll – Only spongy parenchyma is present in it.  Palisade parenchyma is present only in few leaves.
  • Vascular bundle – Sclerenchyma is present below & above the vascular bundle. Simple parenchyma is also present on the lateral side of vascular bundle.

I think; now doing a comparative study of both will be easy for you as I have provided all data here. Stillif you find any doubt or issue in it please post it on discussion board here. Your all queries will be answered J

And yes now you can take a look to some of the difficult terms used in my blog.

Conjoint:  Here xylem and phloem lies in same bundle.

Collateral: Phloem is present towards the outer side and xylem lies toward the inner side.

Open: When Cambium is present between phloem and xylem.

Closed: Here Cambium is absent between phloem and xylem.

Exarch: When protoxylem lies towards the outerside&metaxylem is present towards the centre.

Endarch: When metaxylem occurs towards the outer side and protoxylem towards the inner side.

Prosenchyma– It is a plant tissue with elongated cells & tapering ends in it.
