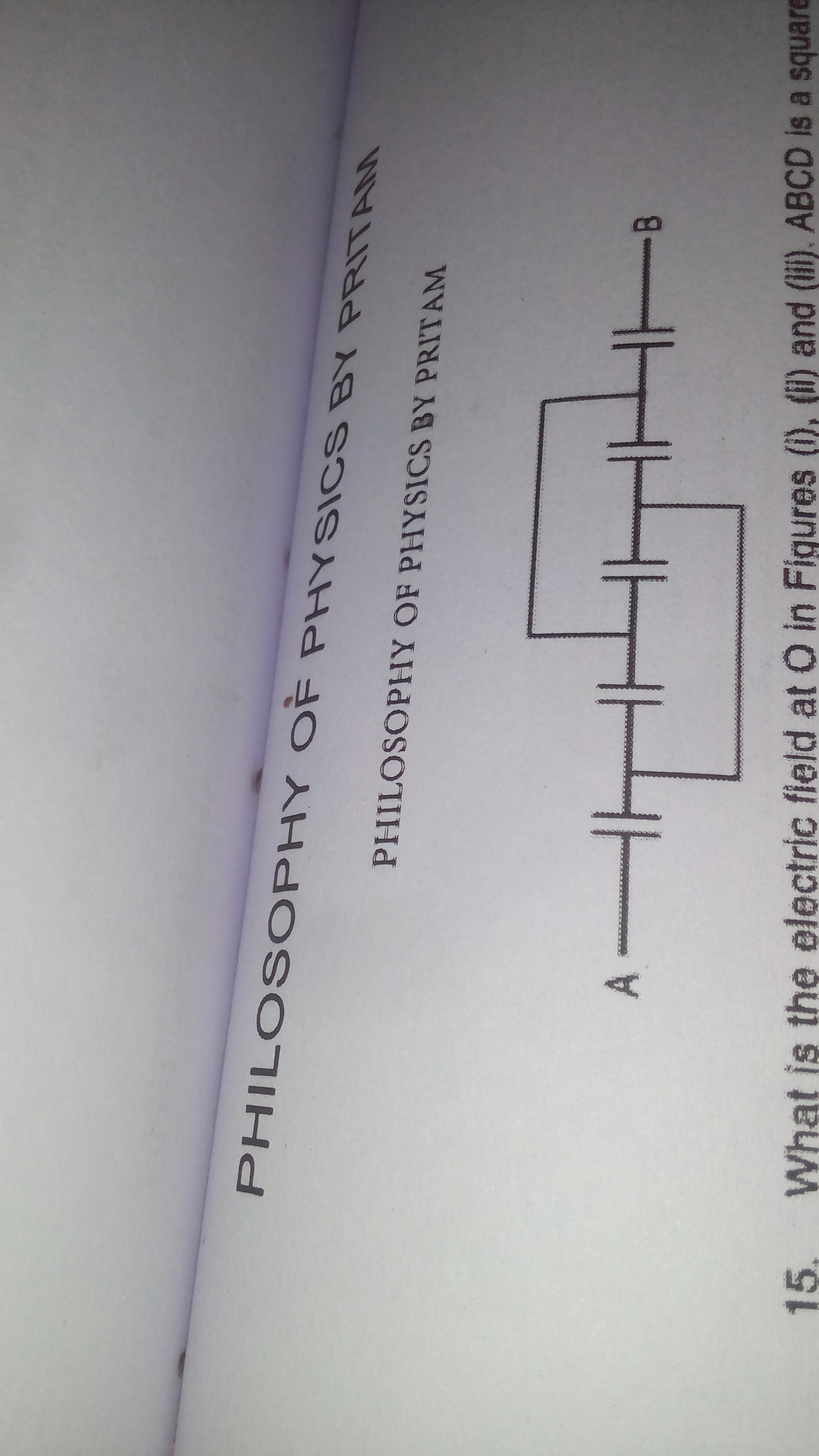

What will be the equivalent capacitor where all the capacitor are of 2 F .

Question image for What will be the equivalent capacitor where all t
Profile image of Saumya Chauhan
7 Years agoGrade 12
Answers icon

1 Answer

Profile image of Khimraj
7 Years ago
Inner three capacitor are in parallel.
So If you redraw the circuit it will be equivalent of series combination of 2F 6F and 2F.
so ewuivalent is 6/7 F
Hope it clears.................
