Good morning sir. Answer is 3 Rd option. Explain it sir....

Good morning sir.
Answer is 3 Rd option.
Explain it sir....

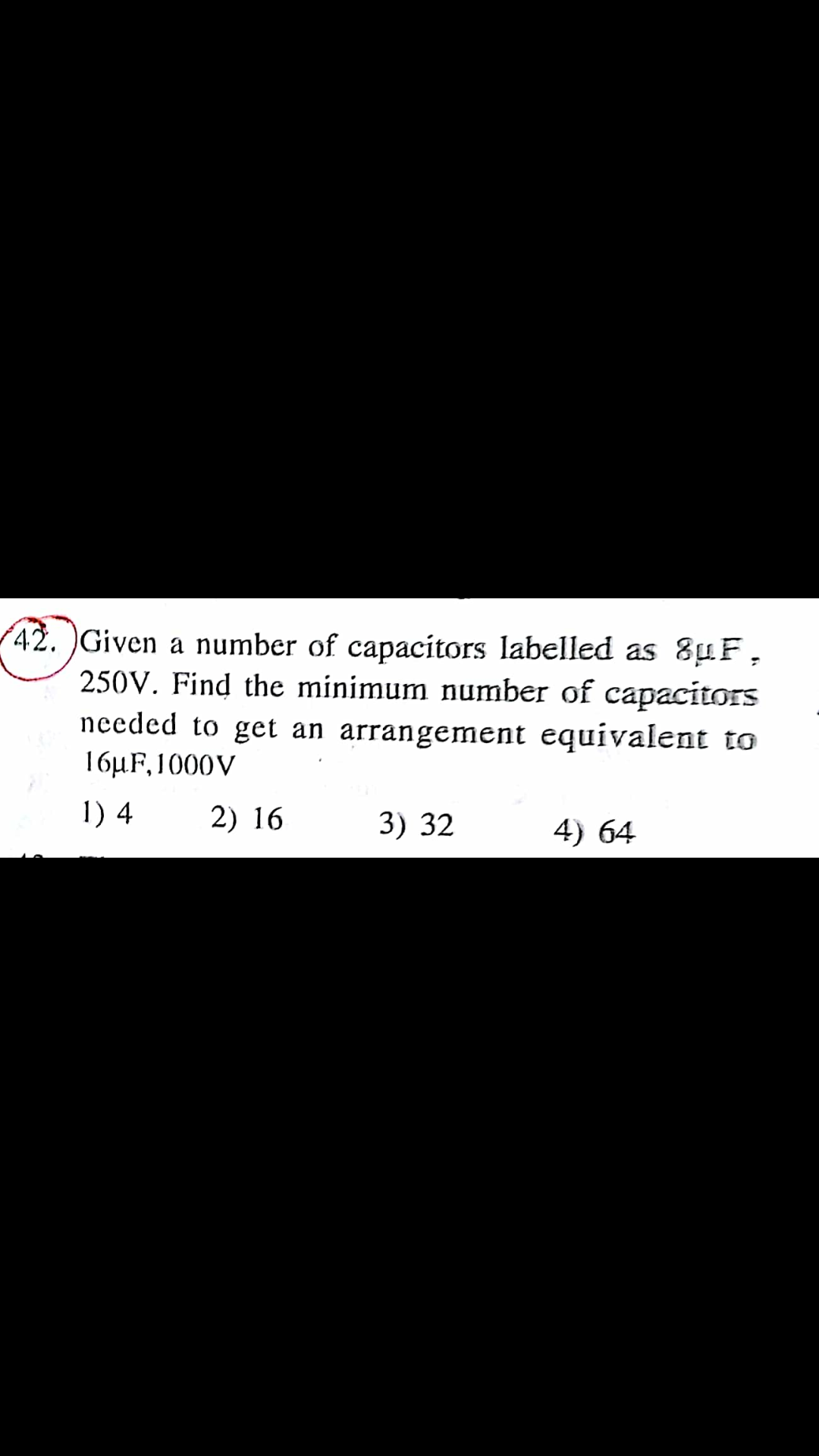

Question Image
Grade:

1 Answers

Arun
25750 Points
5 years ago
Dear Raju

The required voltage is 1000 volt and the capacitors are labelled as 250 V . So no. of capacitors required will be 4 i.e. 250×4=1000 in series. Now Ceq of 4 capacitors in series will be equal to 2 micro farad. But the equievalent capacitance required is given as 16 microfarad. So there must be 8 series of parallel arranged capacitors each of capacitance 2 microfarad. Hence total no. of capacitors is 4×8 =32
