Electrostatics

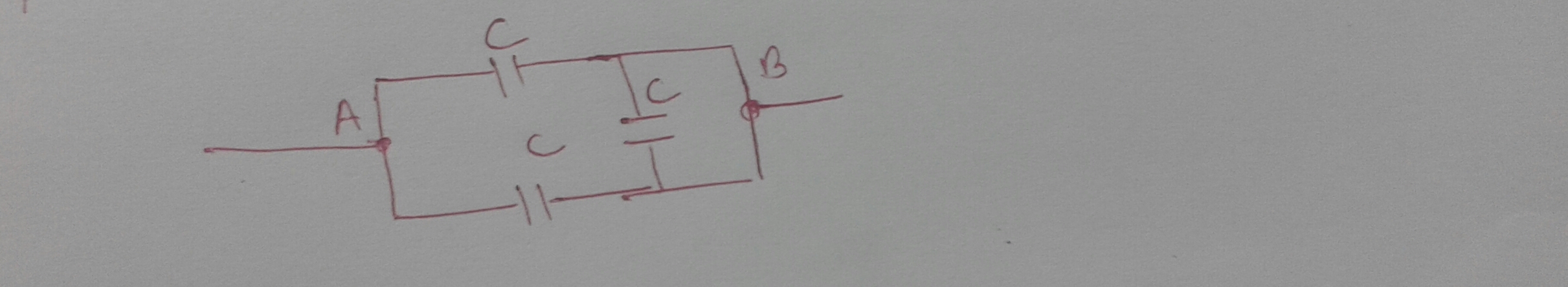

find the equivalent capacitance between point A and B

Question image for find the equivalent capacitance between point A an
Profile image of Priya Bahuguna
12 Years agoGrade
Answers icon

2 Answers

Profile image of Mahima
12 Years ago
answer is ‘2c’ ..
there will be short circuit at the third plate as both of them are connected to ‘b’ so there will be same potential.. we remove the short circuit part and solve :)
cheers!
-mahi
Profile image of Vikas TU
6 Years ago
Dear student
The last capacitor is short circuit ,
so the equivalent capacitance will be c|| c
So , It will be 2c .
Good Luck
