To understand the relationship between path difference and the position of minima in interference patterns, let's break down the concepts involved. In wave interference, particularly with light or sound waves, the path difference between two waves arriving at a point can determine whether they interfere constructively or destructively. When we talk about minima, we are specifically referring to points of destructive interference.
Path Difference and Minima
For two waves to interfere destructively, the path difference must be an odd multiple of half the wavelength. This can be expressed mathematically as:
- Path difference = (m + 0.5)λ, where m is an integer (0, 1, 2, ...)
This means that the first minimum occurs at a path difference of λ/2, the second minimum at 3λ/2, and so on. The reason for this is that when the path difference is λ/2, one wave is at its peak while the other is at its trough, leading to cancellation.
Understanding Your Observation

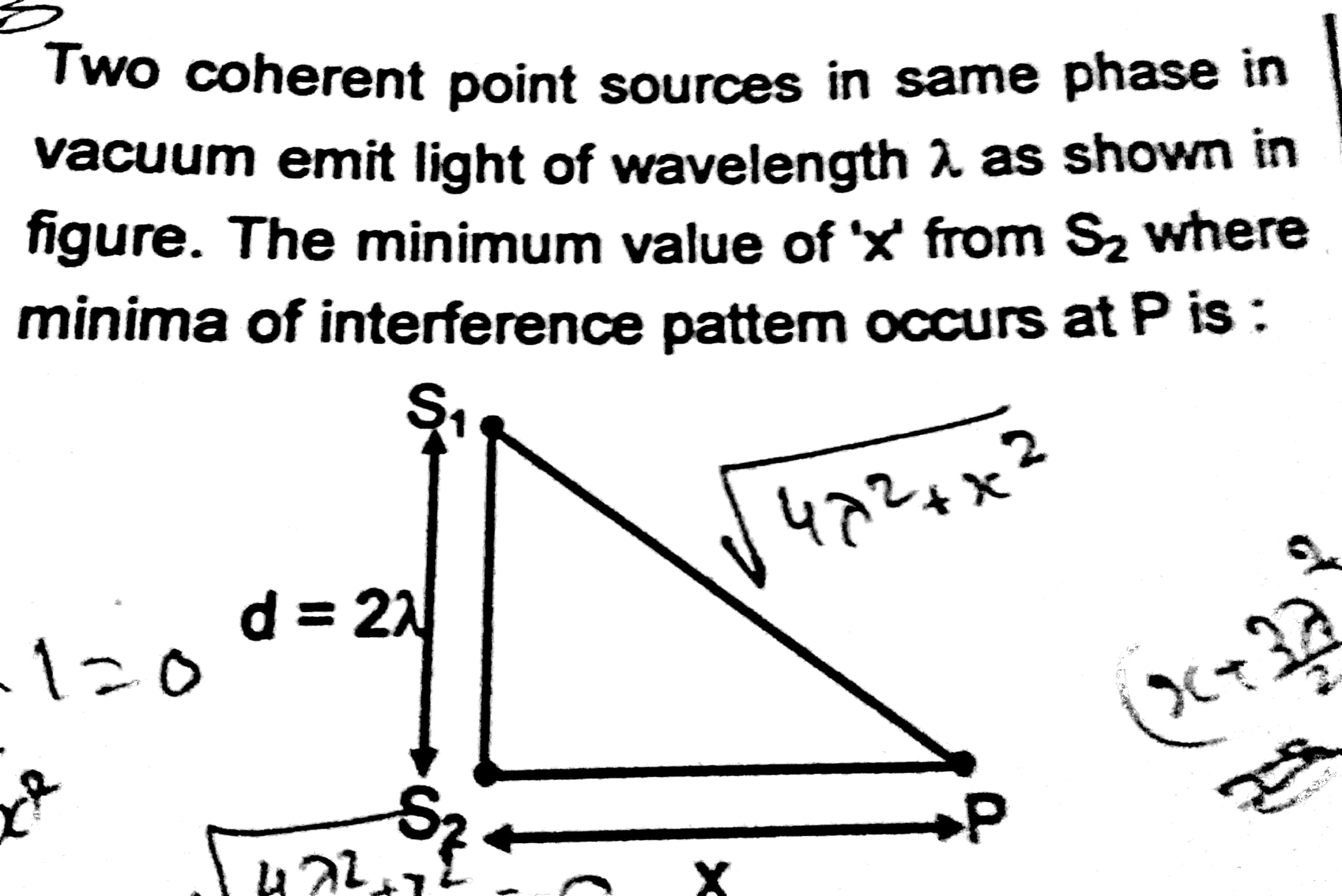

You mentioned that you observe a minimum value of x when the path difference is 3λ/2 rather than λ/2. This can be explained by considering the geometry of the setup and how x relates to the path difference. If we denote x as the distance from a reference point (like a slit or a source), the path difference can change as x varies.
As x increases, the path difference can indeed decrease, depending on the configuration of your experimental setup. For example, if you have two sources of waves and you are measuring the path difference at a point on a screen, moving along the screen will change the distances from each source to that point.
Analyzing Path Differences
To find the specific values of x corresponding to each minimum, you can set up an equation based on the geometry of your system:
- For the first minimum: Path difference = λ/2
- For the second minimum: Path difference = 3λ/2
- For the third minimum: Path difference = 5λ/2
By substituting the path difference into your geometric equations, you can solve for x. For instance, if you have a double-slit setup, the path difference can be expressed in terms of the angle θ and the distance d between the slits:
- Path difference = d sin(θ)
From this, you can derive the values of x that correspond to each minimum by solving the equation for different values of m.
Practical Example
Imagine you have a double-slit experiment where the distance between the slits is d, and you are observing the interference pattern on a screen at a distance L. The position of the minima on the screen can be calculated using:
By plugging in different values of m (0, 1, 2, ...), you can find the corresponding positions x where the minima occur. This approach allows you to systematically check for each value of path difference and its corresponding x.
Conclusion
In summary, the relationship between path difference and the position of minima is fundamental to understanding wave interference. By analyzing the path difference mathematically and geometrically, you can determine the specific values of x that yield minima in your interference pattern. This methodical approach will help clarify the behavior of waves in your experiments.
