Modern Physics> yahan forward bias hoga ya reverse bias i...

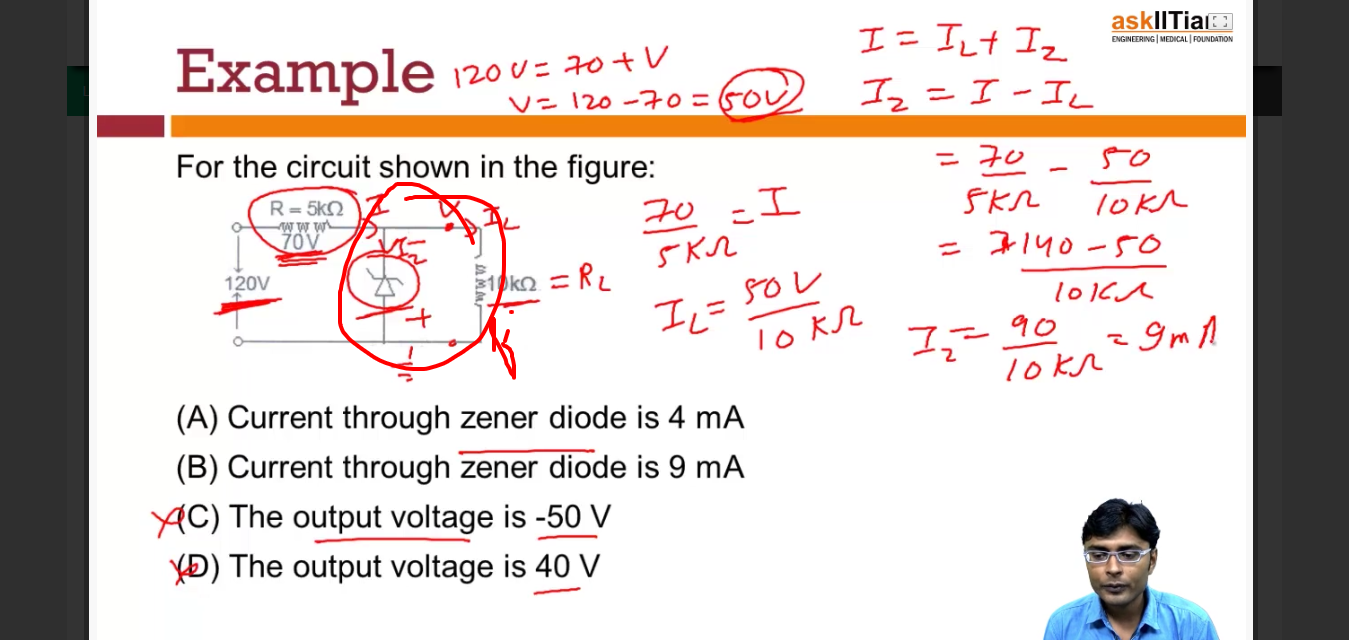

yahan forward bias hoga ya reverse bias
in video it was said reverse but is shown as forward

Free trial , 8 Years ago

Grade 12

1 Answers

Vikas TU

Last Activity: 8 Years ago

Since from figure it appears that the diode is not the normal diode that is crystal diode.

The diode is zener one and hecne would work only whn it would be Reverse biased.
