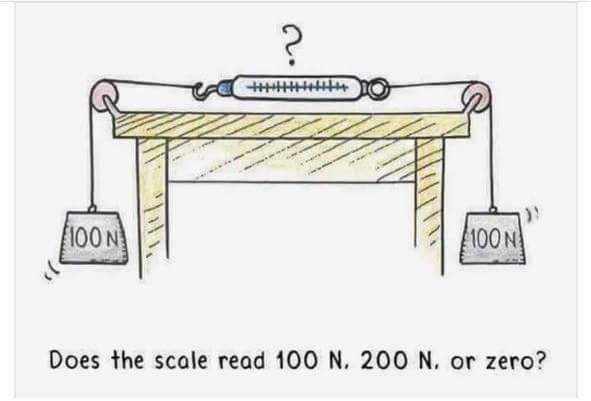

what is the reading shown on the spring will be? is that 200N or 100N?
what is the reading shown on the spring will be? is that 200N or 100N?
Bhavana , 7 Years ago
Grade 12th pass
Mechanics> what is the reading shown on the spring w...
1 Answers
Piyush Kumar Behera
The scale will show reading as 100N.
Let me explain,you must be knowing that if a spring balance is attached between two strings then the spring balance shows the tension in the string (when the spring would be replaced by a string).So in this case when we replace the spring balance by string the tension will be 100 N as it can be easily calculated as both the bodies are at rest and Newton’s second law of motion can be applied to get tension as 100N
So the spring will read as 100 N
I have put my best to answer the question.Please do approve the solution.
Approved Last Activity: 7 Years ago
