Tidal currents in narrow channels connecting coastal bays with the ocean can be very swift; water must flow into the bay as the tide rises and back out to the sea as the tide falls. Consider the rectangular bay shown in Fig. 16-34a. The bay is connected to the sea by a channel 190 m wide and 6.5 m deep at mean sea level. The graph (Fig. 16-34b) shows the diurnal variation of the water level in the bay. Calculate the average speed of the tidal current in the channel.

Tidal currents in narrow channels connecting coastal bays with the ocean can be very swift; water must flow into the bay as the tide rises and back out to the sea as the tide falls. Consider the rectangular bay shown in Fig. 16-34a. The bay is connected to the sea by a channel 190 m wide and 6.5 m deep at mean sea level. The graph (Fig. 16-34b) shows the diurnal variation of the water level in the bay. Calculate the average speed of the tidal current in the channel.

Grade:11

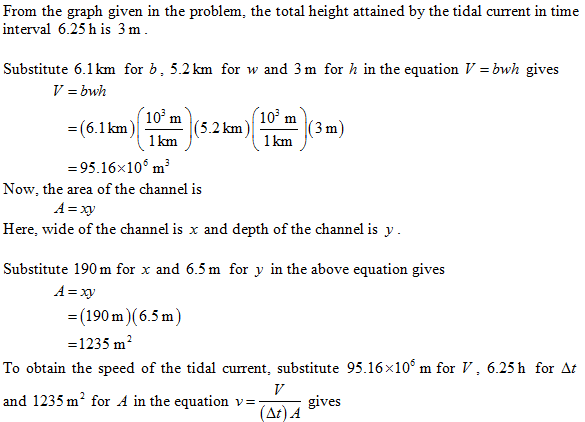

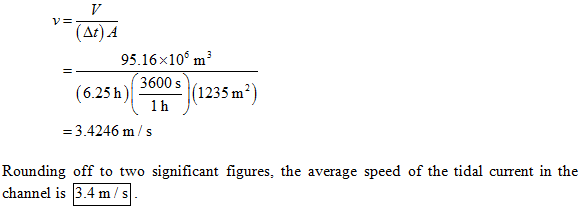

1 Answers

Kevin Nash
askIITians Faculty 332 Points
8 years ago
