Grade 12th PassMechanics

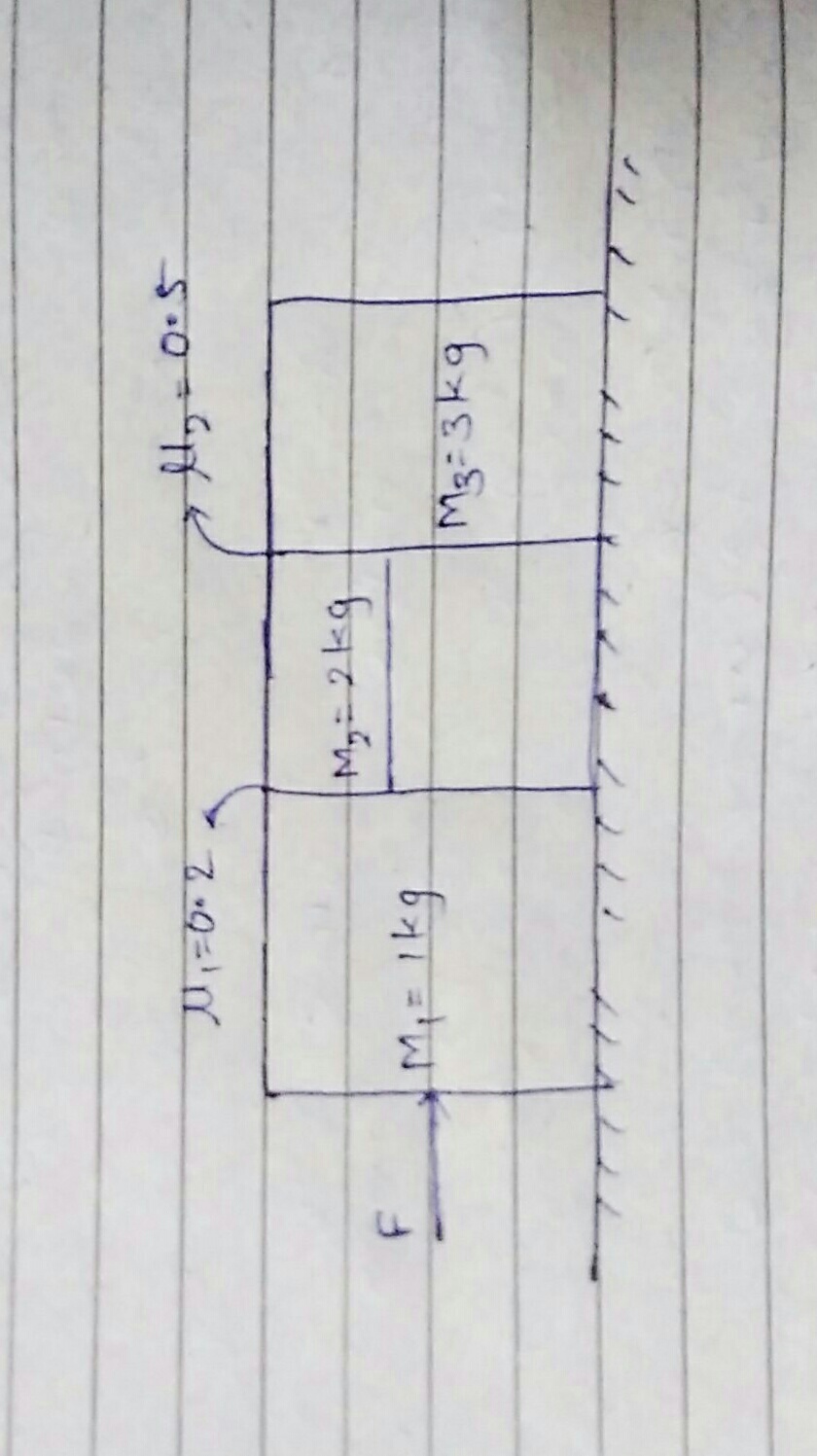

Three blocks M1, m2, m3 of masses 1,2 and 3 kg are arranged as below. Minium force F requured to avoid m2 from slipping down will be

Question image for Three blocks M1, m2, m3 of masses 1,2 and 3 kg are

Subodh Wasnik

8 Years agoGrade 12th Pass

1 Answer

Shuvendu

8 Years ago

From F.B.DTotal acceleration=f÷[M1+m2+M3)=f/6.For 3kg block:N2=M3*a=f/2For 1kg block:f-N1=M1*a.=>N1=5f/6For 2kg block:Fr1+Fr2=m2*g=>0.2*5f/6+0.5*f/6=20=>F=80N

Three identical balls are placed on a frictionless horizontal surface touching each other. They stick to each other because of adhesive. Another ball of same radius and mass m is placed over the void created by the three balls. Find the forces applied by the balls kept on the floor to each other if the system remains in equilibrium.

mechanics

1 Answer Available

Last Activity: 10 Months ago

A car loaded with water having total mass 1000 kg moves on a straight horizontal Road starting from rest under the action of a force of 100 Newton. The water spills throw a small hole in the bottom at a rate of 0.1 KG per second the velocity of cart after 300 seconds is nearly.

11
21
31
41

mechanics

1 Answer Available

Last Activity: 10 Months ago

A metal strip clamped at one end vibrates with a frequency of 20 Hz and amplitude of 5 mm
at the free end, where a small mass of 2 g is positioned. determine
(i) The velocity of the end when passing through the zero position
(ii) The acceleration at maximum displacement
(iii) The maximum kinetic energy of the mass

mechanics

2 Answers Available

Last Activity: 3 Years ago

An object of mass m = 0.25 kg oscillates in a fluid at the end of a vertical spring of spring
constant kH = 85 N/m, see Fig.1. The effect of the fluid resistance is governed by the
damping constant b = 0.07kg/s.
(i) Find the period of the damped oscillation.
(ii) By what percentage does the amplitude of the oscillation decrease in each cycle?

mechanics

1 Answer Available

Last Activity: 3 Years ago

If a=x² find the displacement at t =3sec if body velocity at t= 0 sec is 0

mechanics

1 Answer Available

Last Activity: 3 Years ago
