Grade 12th passMechanics

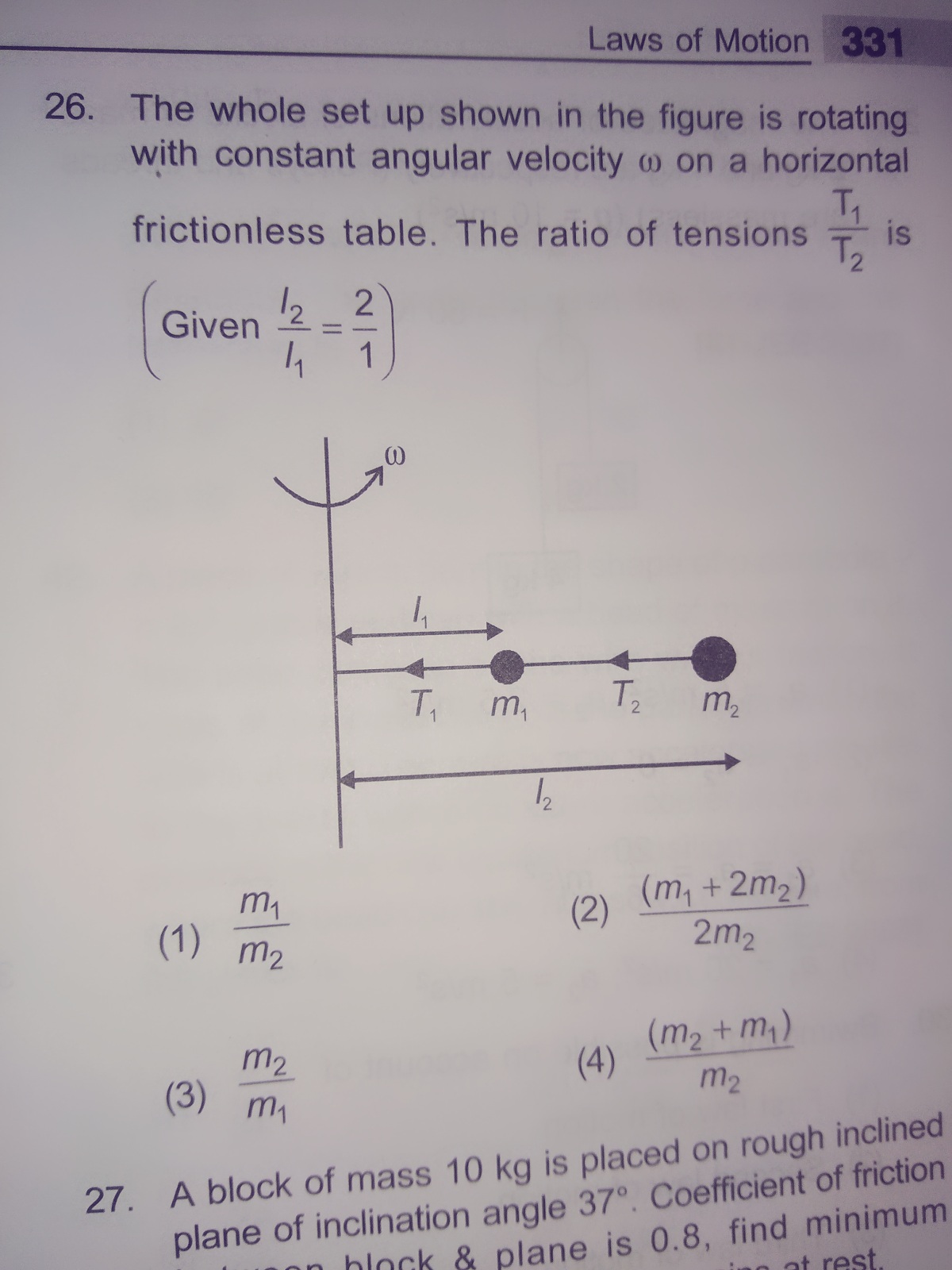

The whole set up shown in the figure is rotating with constant angular velocity omega on a horizontal frictionless table. The ration of tension t1/t2 (given l2:l1=2:1

Question image for The whole set up shown in the figure is rotating w
Profile image of ankush kumar
8 Years agoGrade 12th pass
Answers icon

1 Answer

Profile image of disha sharma
4 Years ago



  • here you have to remember the formula of tenison that is mwl2 just here u will didvide l1 and l2 as there are two string and solve accordingly
and it will
m1+m2l2/l1 /m2*l2
  • put l2/l1 as= 2
and m1+2m2/2m2 is ur answer

I hope this will help u
