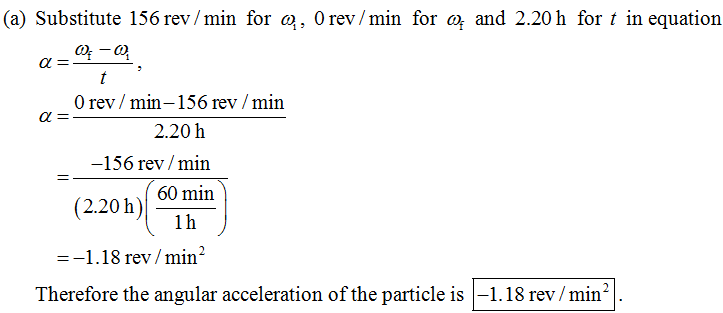

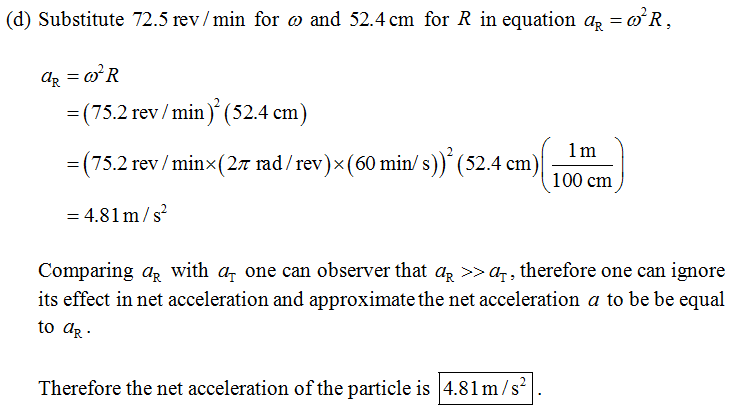

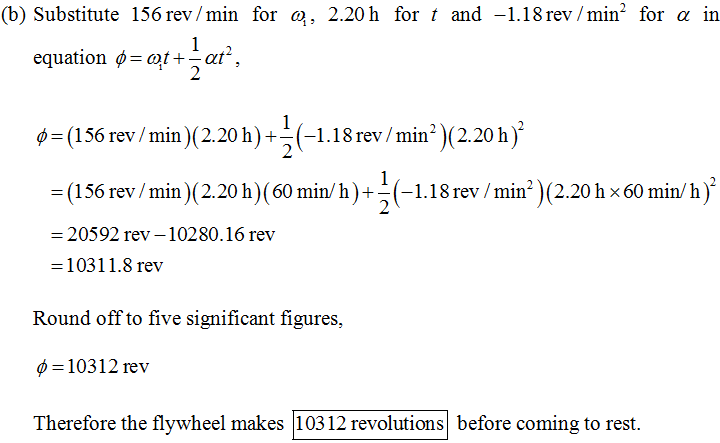

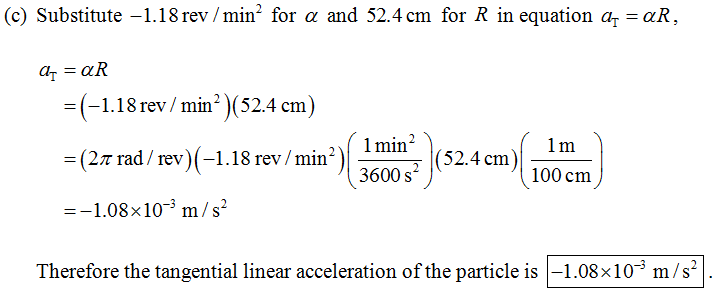

The flywheel of a steam engine runs with a constant angular speed of 156 rev/min. When steam is shut off, the friction of the bearings and of the air brings the wheel to rest in 2.20 h. (a) What is the constant angular acceleration of the wheel, in rev/min2? (b) How many rotations will the wheel make before coming to rest? (c) What is the tangential linear acceleration of a particle 52.4 cm from the axis of rotation when the flywheel is turning at 72.5 rev/min? (d) What is the magnitude of the total linear acceleration of the particle in part (c)?

The flywheel of a steam engine runs with a constant angular speed of 156 rev/min. When steam is shut off, the friction of the bearings and of the air brings the wheel to rest in 2.20 h. (a) What is the constant angular acceleration of the wheel, in rev/min2? (b) How many rotations will the wheel make before coming to rest? (c) What is the tangential linear acceleration
of a particle 52.4 cm from the axis of rotation when the flywheel is turning at 72.5 rev/min? (d) What is the magnitude of the total linear acceleration of the particle in part (c)?

Grade:10

1 Answers

Aditi Chauhan
askIITians Faculty 396 Points
8 years ago
