Grade 12Mechanics

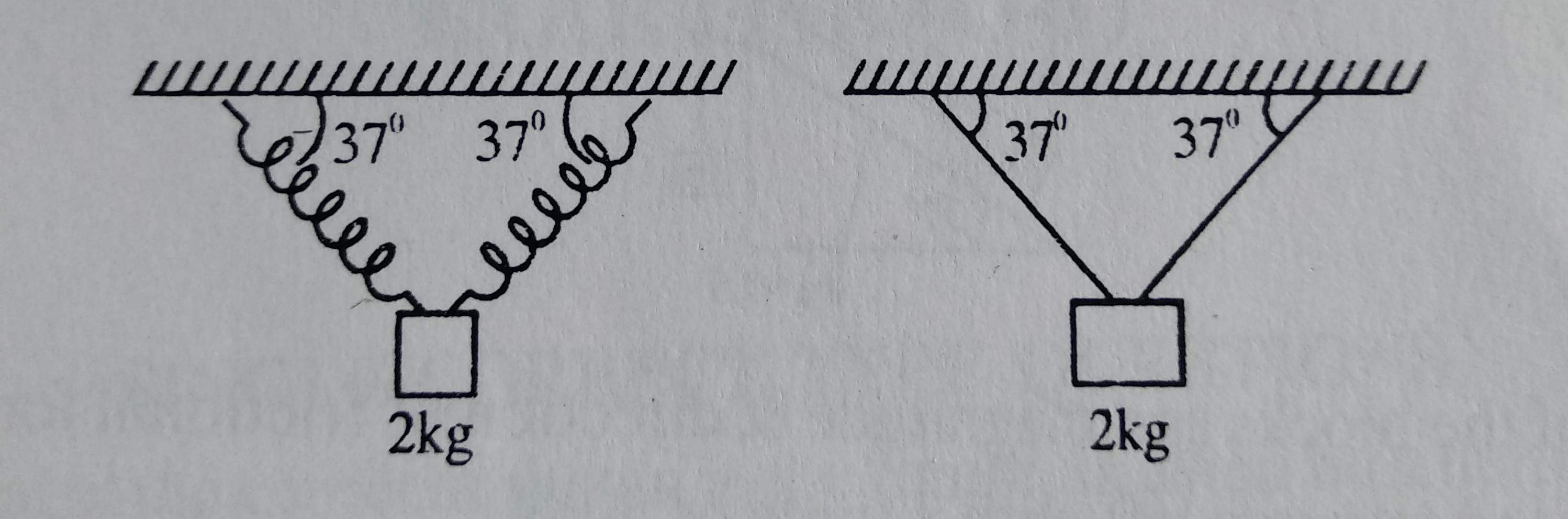

The blocks are of mass 2kg shown is in equilibrium.At t=0 right spring in figure (1) and right string in figure (2) breaks .Find the ratio of instantaneous acceleration of the blocks?

Question image for The blocks are of mass 2kg shown is in equilibriu
Profile image of Shakshi ravi
6 Years agoGrade 12
Answers icon

1 Answer

Profile image of Harsh
6 Years ago
Please provide options, if the ans is 1:1 then here is the explanation.
The condition in the case of springs will be as follows.
The force of weight will be acting on the 2 kg block
The spring force will be f=Kx
We need to balance this forces
Hence on resolving the spring forces we get
2kxsin37=2g
Hence kx =g/sin37.   Let it be 1st eqn
In case of string the eqn will be
 2Tsin37=2g
Hence T=g/sin37
Now cancelling masses from 2 eqn we have both the forces eqal hence their acceleration need to be equal.
If the ans is not 1:1 then please provide options i will surely look about the answer again
