Grade 12Mechanics

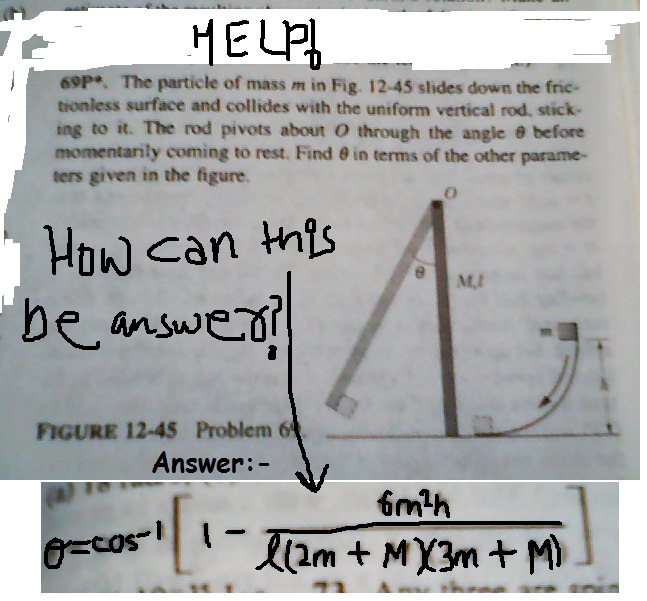

question is in image.
question is in image.
1 Answer
Saurabh Kumar
P.E. of the small block -->> K.E. of the block -->>Gain in PE. of the combined system.
mgh = ½ mv2 = mgL(1 – cos@) + MgL/2 (1 – cos@) ..
Put the value of cos@
Proceed in this way and calculate the answer..
mgh = ½ mv2 = mgL(1 – cos@) + MgL/2 (1 – cos@) ..
Put the value of cos@
Proceed in this way and calculate the answer..
