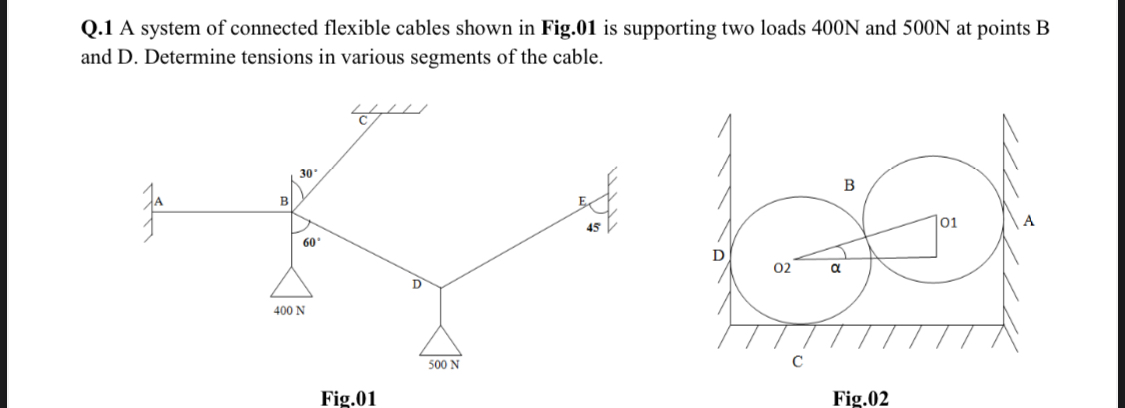

Q.1 A system of connected flexible cables shown in Fig.01 is supporting two loads 400N and 500N at points B and D. Determine tensions in various segments of the cable.

Q.1 A system of connected flexible cables shown in Fig.01 is supporting two loads 400N and 500N at points B
and D. Determine tensions in various segments of the cable.


Question Image
Grade:12th pass

2 Answers

SJ
askIITians Faculty 97 Points
one month ago

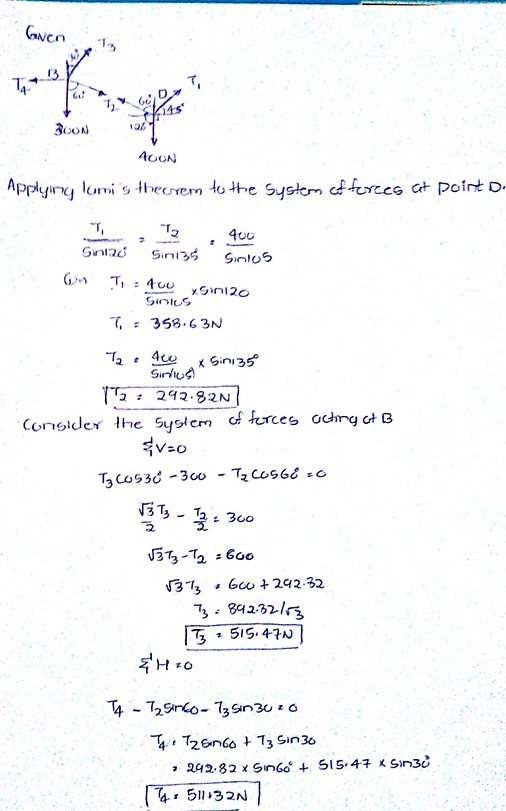

Dear student
here is your answer
Anuuu S
26 Points
one month ago
Two smooth spheres of radius 150 mm each and weighing 250N each rest in a horizontal channel having
vertical walls, the distance between the walls being 560mm. Find the reactions at the points of contact A, B, C
and D. Fig.02.
