Grade 12th passMechanics

Plzz solve this............
............. ..................

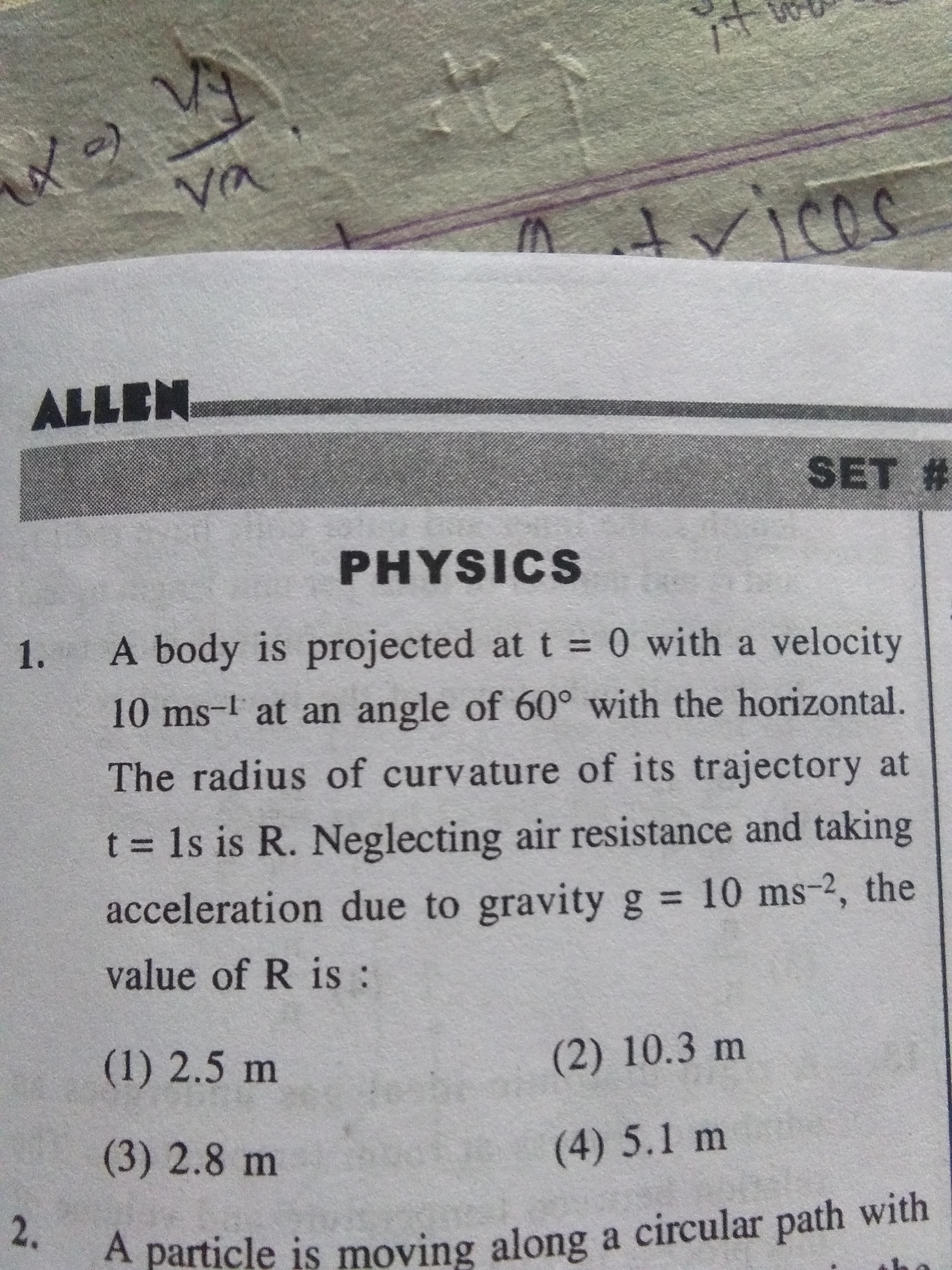

Question image for Plzz solve this............ ............. .......

Aryan

7 Years agoGrade 12th pass

1 Answer

Arun

7 Years ago

Dear Aryan

Equation of path of a projectile -

$y= x \tan \theta\: - \: \frac{gx^{2}}{2u^{2}\cos ^{2}\theta }$

it is equation of parabola

$g\rightarrow$ Acceleratio due to gravity

$u\rightarrow$ initial velocity

$\theta =$ Angle of projection

- wherein

Path followed by a projectile is parabolic is nature.

$V_{x}=10\cos\: 60=5m/s$

$V_{y}=10\cos\: 30=5\sqrt{3}m/s$

Velocity after t = 1 sec

$V_{x}=5 m/s$

$1V_{y}1=(10-5\sqrt{3})m/s$

$Q_{n}=\frac{V^{2}}{R}\Rightarrow R=\frac{Vx^{2}+Vy^{2}}{an}$

$R=\frac{27+100+75-100\sqrt{3}}{10\cos \Theta }$

$\Theta =\tan ^{-1}\left ( \frac{10-5\sqrt{3}}{5} \right )=15^{o}$

$\because R=\frac{100(2-\sqrt{3})}{10\cos 15}=2.8 m$

Three identical balls are placed on a frictionless horizontal surface touching each other. They stick to each other because of adhesive. Another ball of same radius and mass m is placed over the void created by the three balls. Find the forces applied by the balls kept on the floor to each other if the system remains in equilibrium.

mechanics

1 Answer Available

Last Activity: 10 Months ago

A car loaded with water having total mass 1000 kg moves on a straight horizontal Road starting from rest under the action of a force of 100 Newton. The water spills throw a small hole in the bottom at a rate of 0.1 KG per second the velocity of cart after 300 seconds is nearly.

11
21
31
41

mechanics

1 Answer Available

Last Activity: 10 Months ago

A metal strip clamped at one end vibrates with a frequency of 20 Hz and amplitude of 5 mm
at the free end, where a small mass of 2 g is positioned. determine
(i) The velocity of the end when passing through the zero position
(ii) The acceleration at maximum displacement
(iii) The maximum kinetic energy of the mass

mechanics

2 Answers Available

Last Activity: 3 Years ago

An object of mass m = 0.25 kg oscillates in a fluid at the end of a vertical spring of spring
constant kH = 85 N/m, see Fig.1. The effect of the fluid resistance is governed by the
damping constant b = 0.07kg/s.
(i) Find the period of the damped oscillation.
(ii) By what percentage does the amplitude of the oscillation decrease in each cycle?

mechanics

1 Answer Available

Last Activity: 3 Years ago

If a=x² find the displacement at t =3sec if body velocity at t= 0 sec is 0

mechanics

1 Answer Available

Last Activity: 3 Years ago
