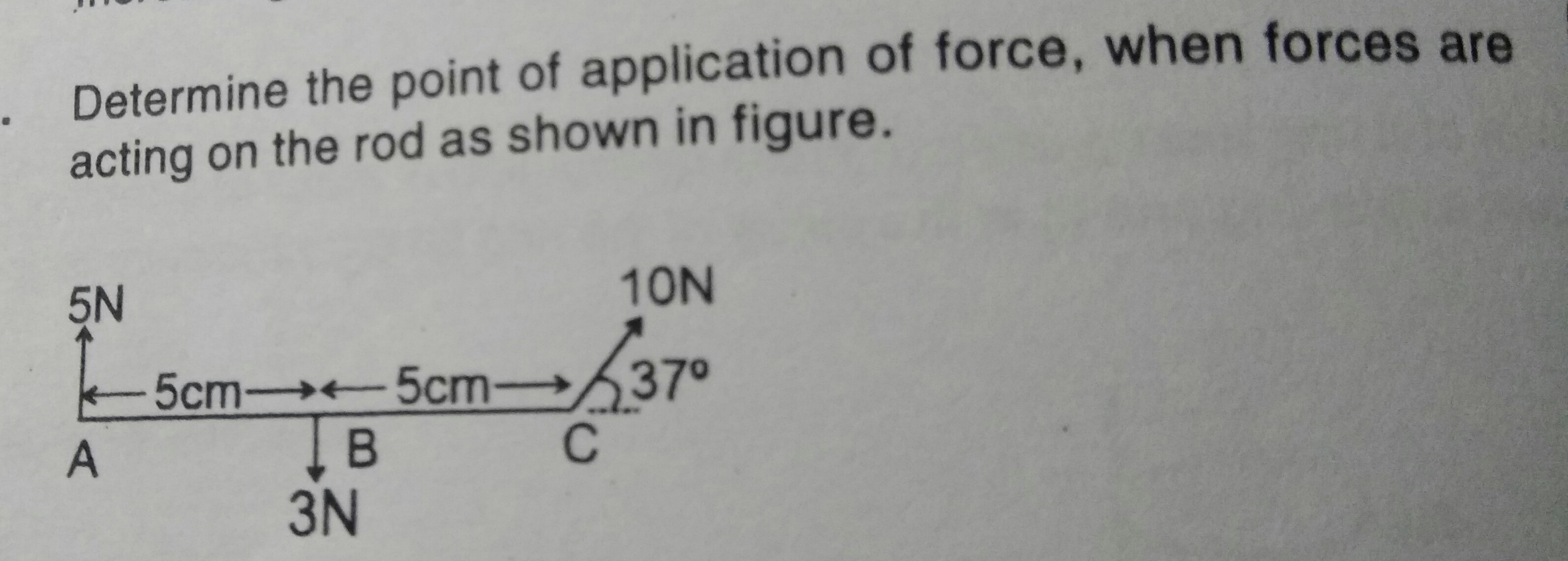

Pls help me with this question sir , pls help..... Pls give the proper steps for this q toooo
Rishabh Alayathil , 7 Years ago
Grade
Mechanics> Pls help me with this question sir , pls ...
1 Answers
Khimraj
first resolve 10 N as 6N in upward and 8N in horizontal.
Let point of application of force is at distance of x cm from point B toward point C then
torque about this point will be zero.
5*(5+x) = 3*x + 6*(5-x)
25 + 5x = 3x + 30 -6x
8x = 5
So x = 5/8 cm from point B toward point C.
