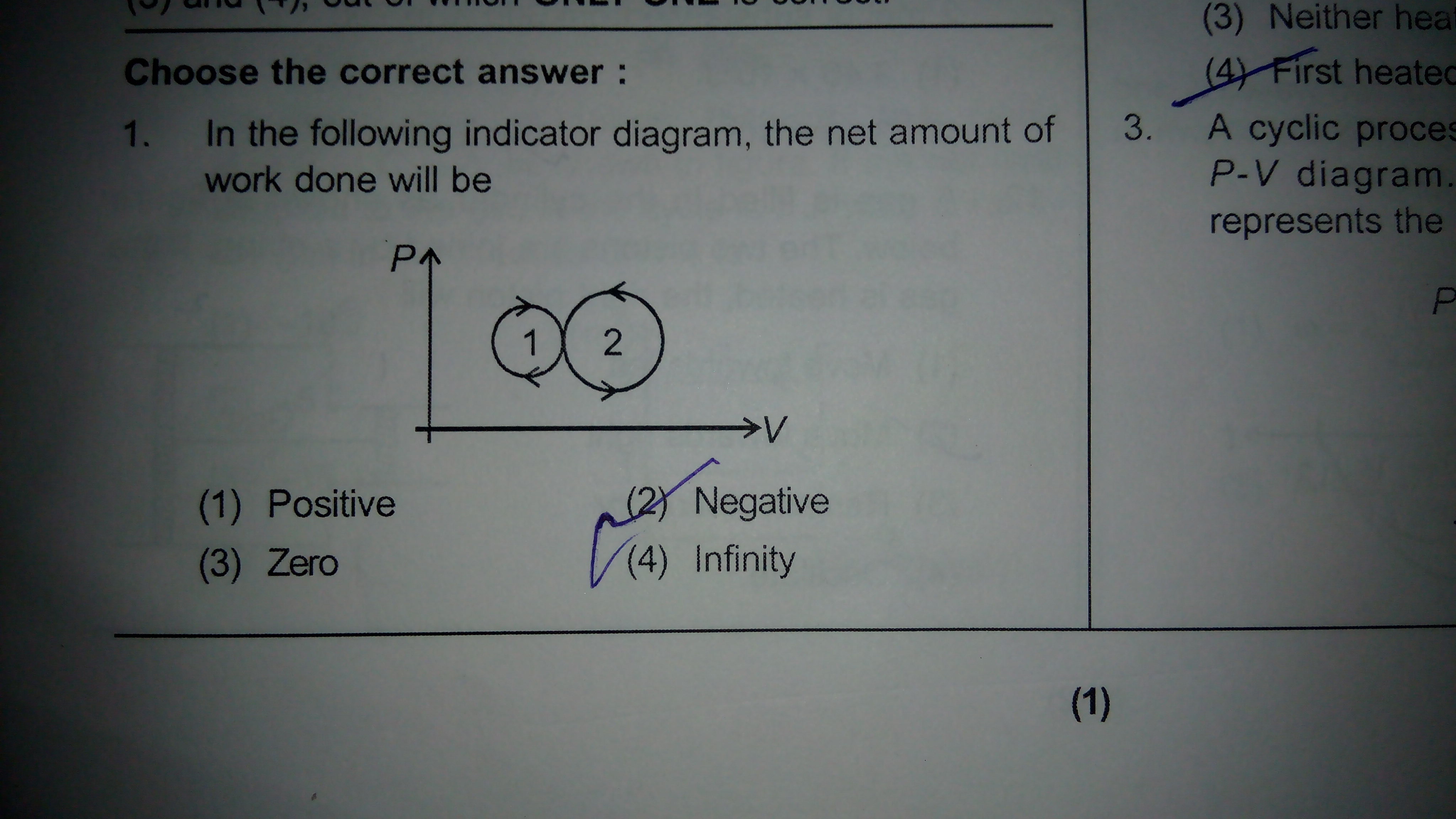

please solve this graph based question and what is indicator diagram mean ?
please solve this graph based question and what is indicator diagram mean ?
1 Answer
Vikas TU
The loops are closed therfore,
The total work done by each loop would be zero.
Hence it is a closed loop.
The net Work Done is zero for closed loop as change in Volume is zero being volume constant.
