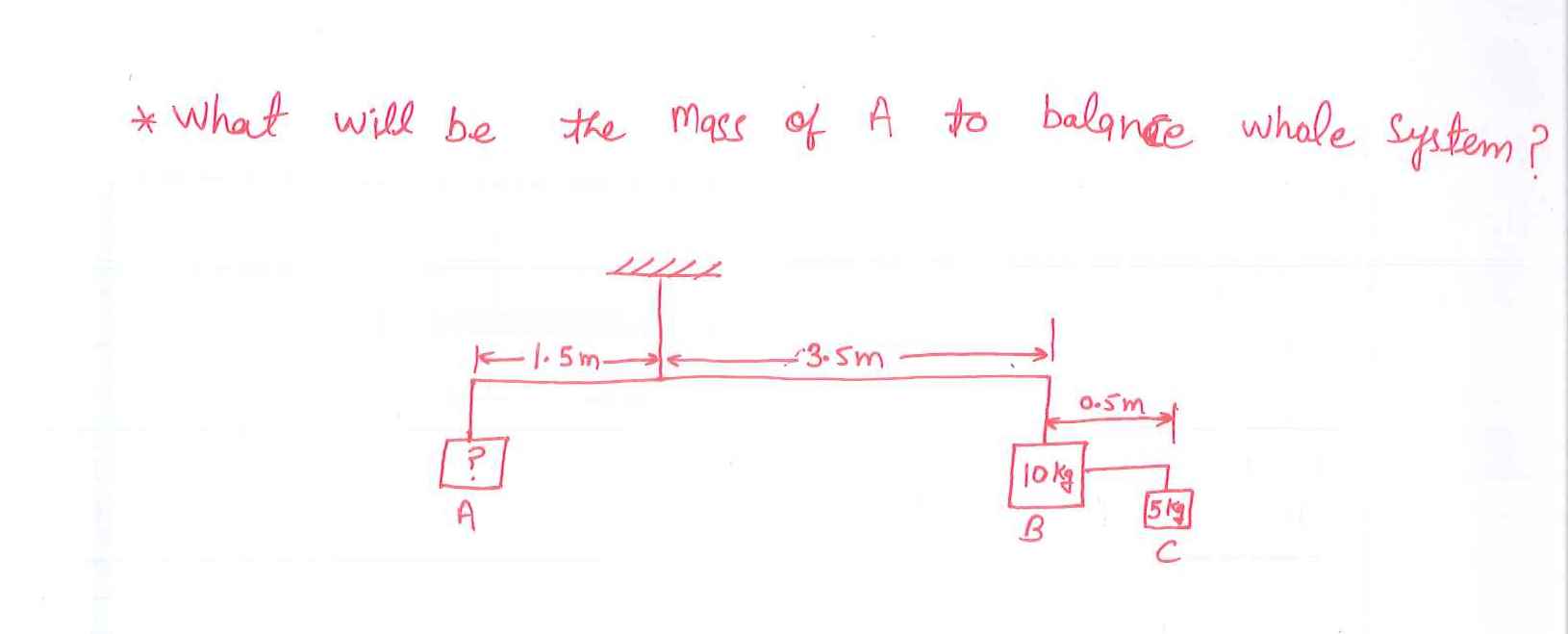

My problem is related to balance of system.Please find the attached file for problem.
Thanks,
Kamlesh
My problem is related to balance of system.
Please find the attached file for problem.
Thanks,
Kamlesh
Thanks,
Kamlesh
1 Answer
Sandeep Pathak
Balancing moments about the rigid support we get,
WA x 1.5 – 10 x 3.5 – 5 x 4 = 0
WA = 55/1.5 = 110/3 = 33.3 kg
WA x 1.5 – 10 x 3.5 – 5 x 4 = 0
WA = 55/1.5 = 110/3 = 33.3 kg
