Grade 12Mechanics

kindly solve this question

Image attached

I have used the equations properly but i dont know whether it is correct

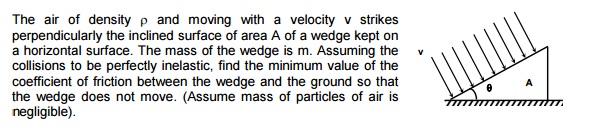

Question image for kindly solve this question Image attached I have

pradeep

10 Years agoGrade 12

1 Answer

Riddhish Bhalodia

10 Years ago

For the wedge not to move
$F_h = \mu N$
$F_h$ is the horizontal component of the force applied by the air
and N = mg + F_v
Fv is the vertical component of the force of the air
Now F on the wedge perpendicular to the inclined surface is
dV = Adx (the differential volume)
hence
$dm = \rho dV = \rho Adx$
Now
$dF = dm v \frac{dv}{dx} = \rho A vdv$
hence we get
$F = \rho A v^2/2$
and hence
$F_h = \rho A v^2sin\theta/2, \quad F_v = \rho Av^2cos\theta/2$
Now solve it

Three identical balls are placed on a frictionless horizontal surface touching each other. They stick to each other because of adhesive. Another ball of same radius and mass m is placed over the void created by the three balls. Find the forces applied by the balls kept on the floor to each other if the system remains in equilibrium.

mechanics

1 Answer Available

Last Activity: 10 Months ago

A car loaded with water having total mass 1000 kg moves on a straight horizontal Road starting from rest under the action of a force of 100 Newton. The water spills throw a small hole in the bottom at a rate of 0.1 KG per second the velocity of cart after 300 seconds is nearly.

11
21
31
41

mechanics

1 Answer Available

Last Activity: 10 Months ago

A metal strip clamped at one end vibrates with a frequency of 20 Hz and amplitude of 5 mm
at the free end, where a small mass of 2 g is positioned. determine
(i) The velocity of the end when passing through the zero position
(ii) The acceleration at maximum displacement
(iii) The maximum kinetic energy of the mass

mechanics

2 Answers Available

Last Activity: 3 Years ago

An object of mass m = 0.25 kg oscillates in a fluid at the end of a vertical spring of spring
constant kH = 85 N/m, see Fig.1. The effect of the fluid resistance is governed by the
damping constant b = 0.07kg/s.
(i) Find the period of the damped oscillation.
(ii) By what percentage does the amplitude of the oscillation decrease in each cycle?

mechanics

1 Answer Available

Last Activity: 3 Years ago

If a=x² find the displacement at t =3sec if body velocity at t= 0 sec is 0

mechanics

1 Answer Available

Last Activity: 3 Years ago
