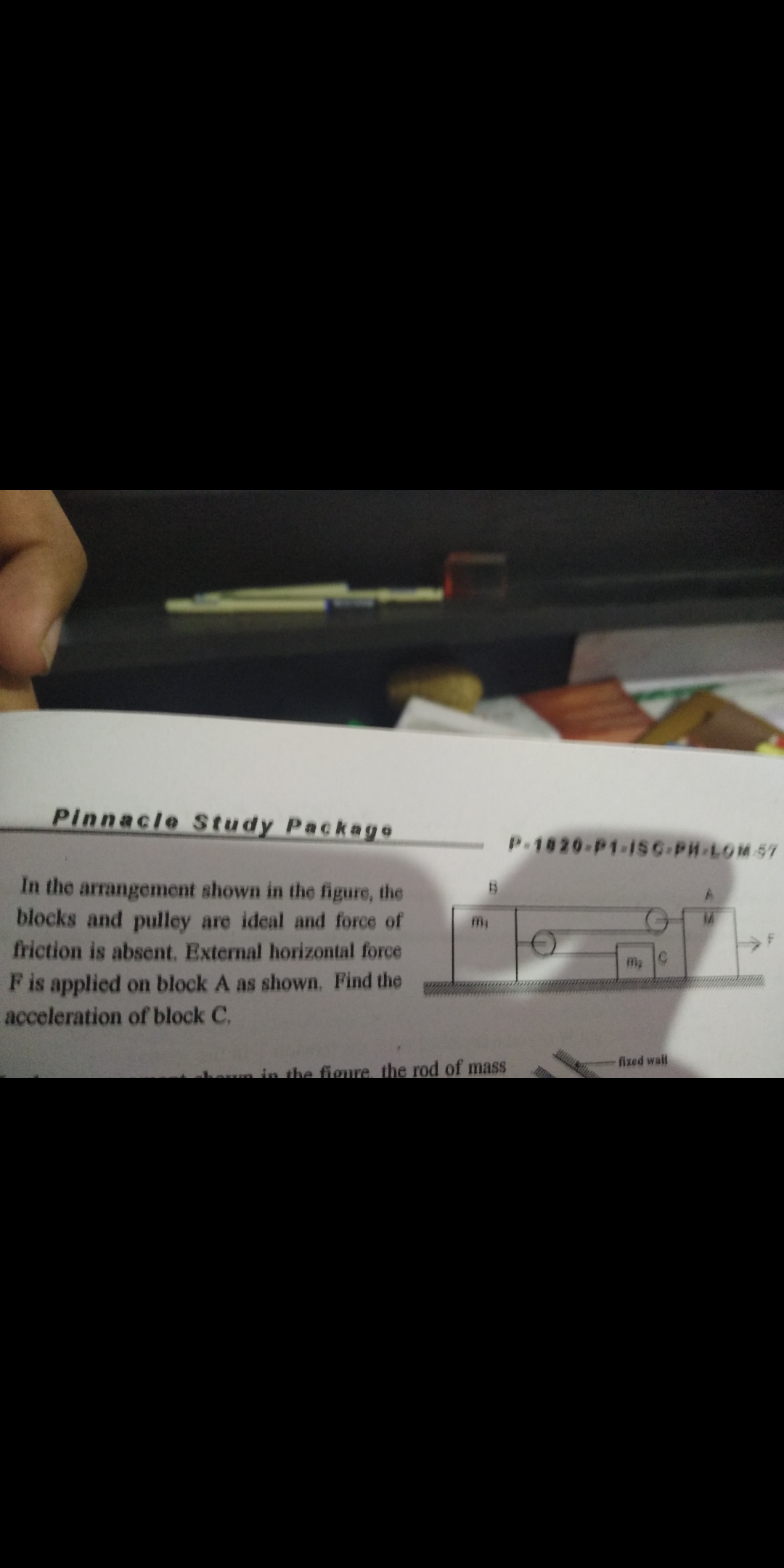

In the arrangement blocks and pulley are ideal find acceleration of c

To determine the acceleration of a block in a system involving pulleys, we first need to understand the forces acting on the blocks and how they interact with each other. Let's break down the problem step by step.

Understanding the System

In a typical arrangement with blocks and pulleys, we often have two or more blocks connected by a string that passes over a pulley. If we assume the pulleys and strings are ideal (meaning they have no mass and there is no friction), we can simplify our calculations significantly.

Identifying Forces

Consider a scenario where we have two blocks, Block A and Block B, with Block A hanging vertically and Block B resting on a frictionless surface. The weight of Block A will exert a force due to gravity, which can be calculated using the formula:

• Weight (W) = mass (m) × gravitational acceleration (g)

Here, g is approximately 9.81 m/s² on the surface of the Earth. If Block A has a mass of m₁ and Block B has a mass of m₂, the forces acting on the system can be analyzed.

Setting Up the Equations

When Block A descends, it pulls Block B horizontally. The net force acting on the system can be expressed as:

• Net Force (F_net) = m₁g - T (for Block A)
• Net Force (F_net) = T (for Block B)

Here, T represents the tension in the string. Since both blocks are connected, they will have the same magnitude of acceleration (a). We can express the equations of motion for both blocks:

• For Block A: m₁g - T = m₁a
• For Block B: T = m₂a

Solving the Equations

Now, we can solve these two equations simultaneously. From the second equation, we can express T as:

• T = m₂a

Substituting this expression for T into the first equation gives us:

• m₁g - m₂a = m₁a

Rearranging this equation leads to:

• m₁g = m₁a + m₂a
• m₁g = (m₁ + m₂)a

Now, we can solve for acceleration (a):

• a = m₁g / (m₁ + m₂)

Example Calculation

Let’s say Block A has a mass of 5 kg and Block B has a mass of 3 kg. Plugging these values into our formula gives:

• a = (5 kg × 9.81 m/s²) / (5 kg + 3 kg)
• a = 49.05 / 8 = 6.13 m/s²

This means the acceleration of the system is approximately 6.13 m/s². This approach can be applied to various configurations of blocks and pulleys, as long as the assumptions of ideal conditions hold true.

Final Thoughts

Understanding the dynamics of blocks and pulleys is crucial in physics, as it lays the groundwork for more complex systems. By analyzing the forces and applying Newton's laws, we can derive the acceleration and other important characteristics of the system. If you have any further questions or need clarification on specific points, feel free to ask!
