Grade 11Mechanics

i have attached the question
in image pls answer
this question is some what tipical

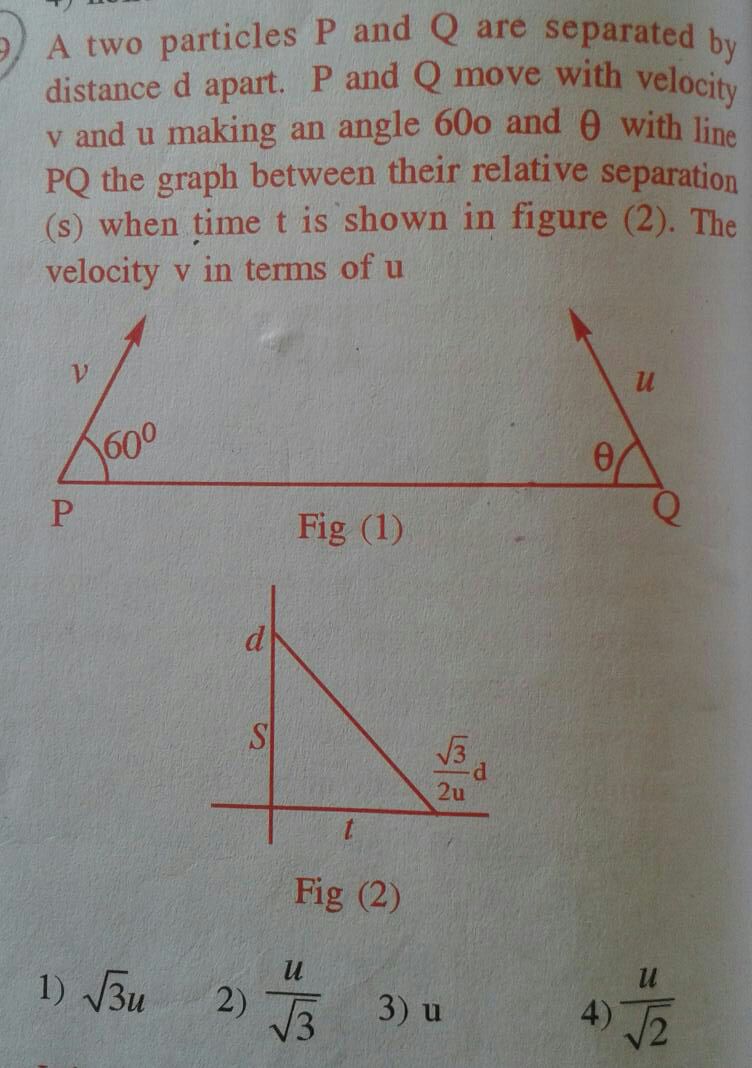

Question image for i have attached the question in image pls answer

revanth

10 Years agoGrade 11

1 Answer

Mallikarjun Maram

10 Years ago

Since the P and Q are colliding at $t = \frac {\sqrt {3}}{2u} d$ , their vertical components of their velocities must be equal. That means

$v sin 60^{o} = u sin \theta$ --- eq 1.

Horizontal components are related such that horizontal distance travelled is d in time $t = \frac {\sqrt {3}}{2u} d$ .

Hence, we have

$(v cos 60^{o} + u cos \theta) * \frac{\sqrt{3}}{2u} d = d$ --- eq 2.

Solve eq 1 and 2 to get $v = \frac {u}{\sqrt{3}}$ .

Three identical balls are placed on a frictionless horizontal surface touching each other. They stick to each other because of adhesive. Another ball of same radius and mass m is placed over the void created by the three balls. Find the forces applied by the balls kept on the floor to each other if the system remains in equilibrium.

mechanics

1 Answer Available

Last Activity: 9 Months ago

A car loaded with water having total mass 1000 kg moves on a straight horizontal Road starting from rest under the action of a force of 100 Newton. The water spills throw a small hole in the bottom at a rate of 0.1 KG per second the velocity of cart after 300 seconds is nearly.

11
21
31
41

mechanics

1 Answer Available

Last Activity: 9 Months ago

A metal strip clamped at one end vibrates with a frequency of 20 Hz and amplitude of 5 mm
at the free end, where a small mass of 2 g is positioned. determine
(i) The velocity of the end when passing through the zero position
(ii) The acceleration at maximum displacement
(iii) The maximum kinetic energy of the mass

mechanics

2 Answers Available

Last Activity: 3 Years ago

An object of mass m = 0.25 kg oscillates in a fluid at the end of a vertical spring of spring
constant kH = 85 N/m, see Fig.1. The effect of the fluid resistance is governed by the
damping constant b = 0.07kg/s.
(i) Find the period of the damped oscillation.
(ii) By what percentage does the amplitude of the oscillation decrease in each cycle?

mechanics

1 Answer Available

Last Activity: 3 Years ago

If a=x² find the displacement at t =3sec if body velocity at t= 0 sec is 0

mechanics

1 Answer Available

Last Activity: 3 Years ago
