Grade 11Mechanics

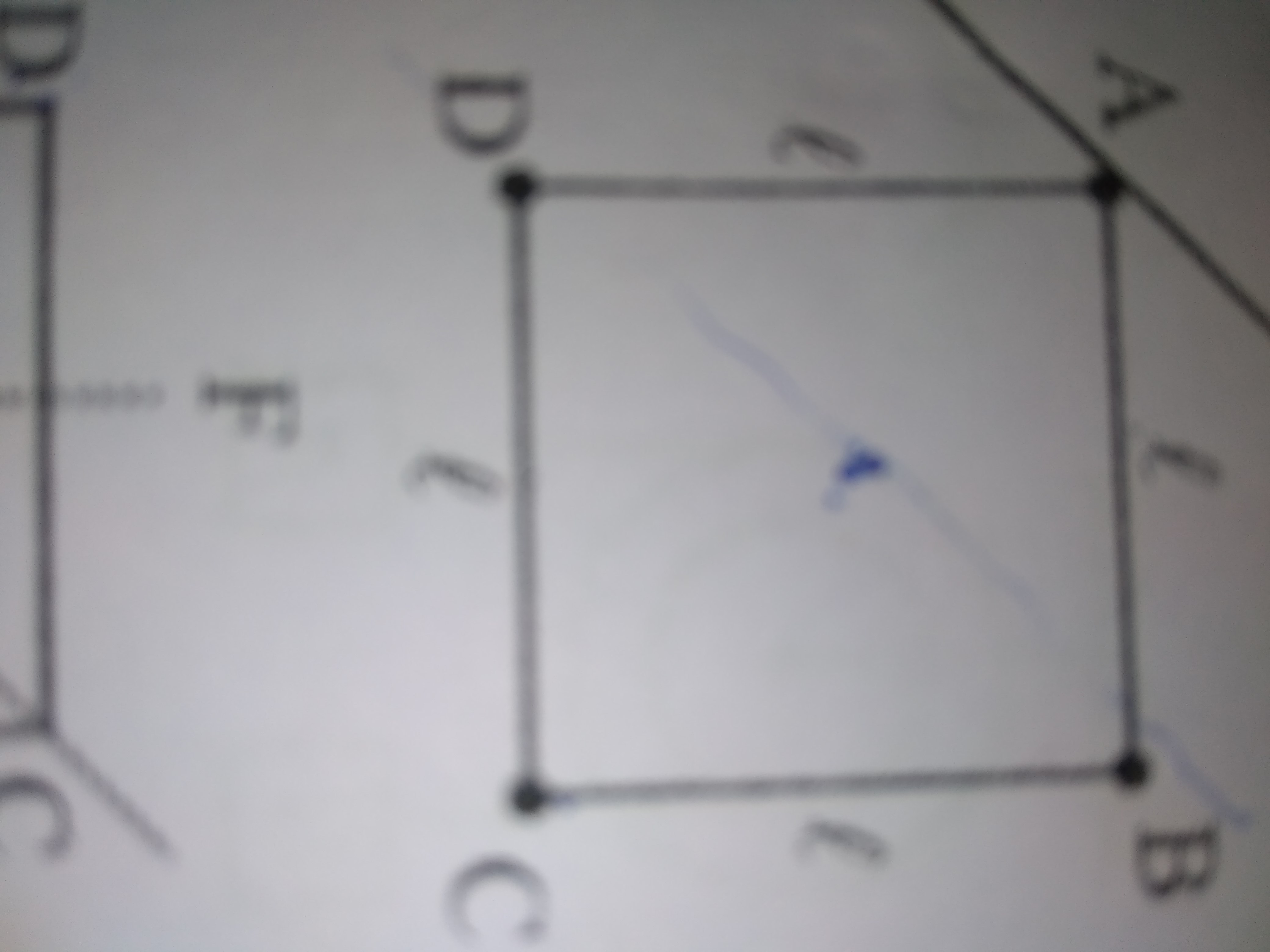

Four point masses each of mass m are on the corners of a square ABCD of side l. The moment of inertia of this system about an axis passing through A and parallel to BD

Question image for Four point masses each of mass m are on the corne
Profile image of Rankush
7 Years agoGrade 11
Answers icon

1 Answer

Profile image of Arun
7 Years ago
Dear student


Moment of inertia for system of particle -

I= m_{1}r_{1}^{2}+m_{2}r_{2}^{2}+.........m_{n}r_{n}^{2}

\dpi{100} = \sum_{i=1}^{n}\: m_{i}r_{i}^{2}



- wherein

Applied when masses are placed discretely.





AOcos45^{\circ}=\frac{l}{2}\; \; \; \Rightarrow \; \; \; AO=\frac{l}{\sqrt{}2}



I=I_{D}+I_{B}+I_{C}\; \; \; or\; \; \; I=\frac{2ml^{2}}{2}+m\left ( \frac{2l}{\sqrt{2}} \right )^{2}

I=\frac{2ml^{2}}{2}+\frac{4ml^{2}}{2}

or\; \; \;I= \frac{6ml^{2}}{2}=3ml^{2}
