Grade 11Mechanics

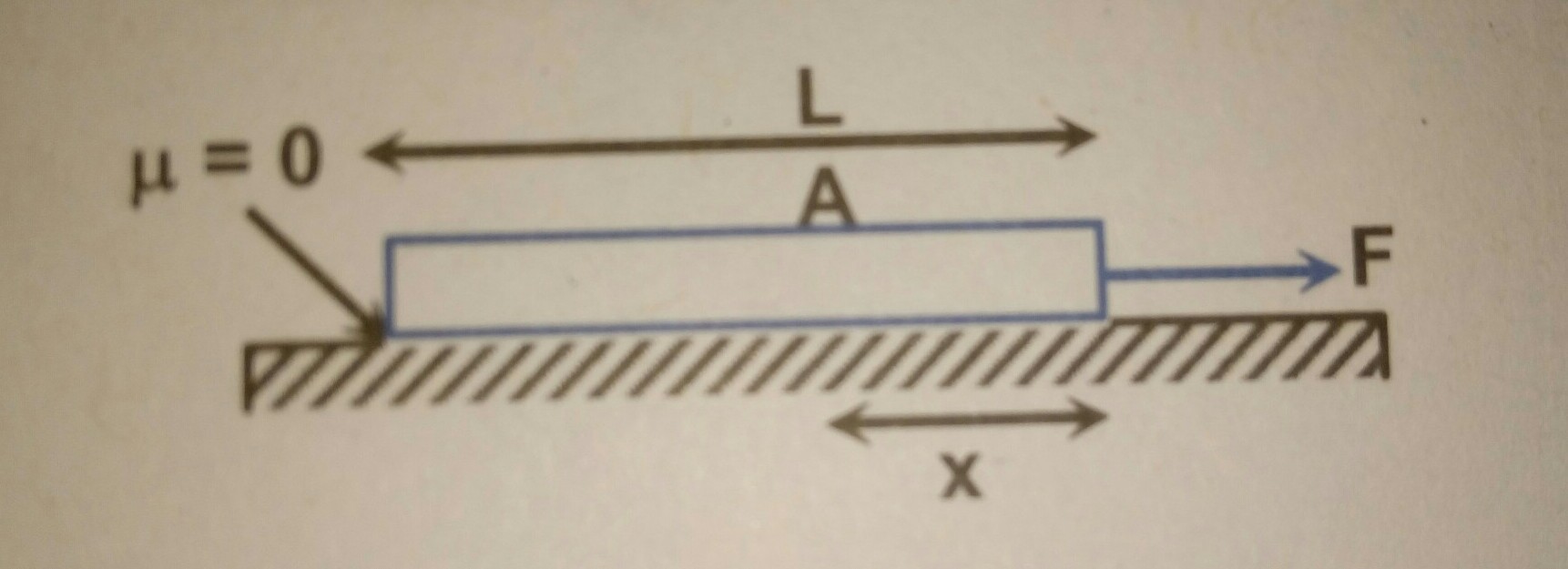

Find the tension in rope at section A, at a distance x from the right end.
Find the tension in rope at section A, at a distance x from the right end.
1 Answer
Vikas TU
Hiii
Acceleration o rope = F/M
Considering linear mass density of rope lambda = M/L= m/(L-x)
Consiering right portion of rope
T = ma
T = F/M * M ( 1-x/L)
T = F (1-x/L)
hope this helps.
