Grade: 11

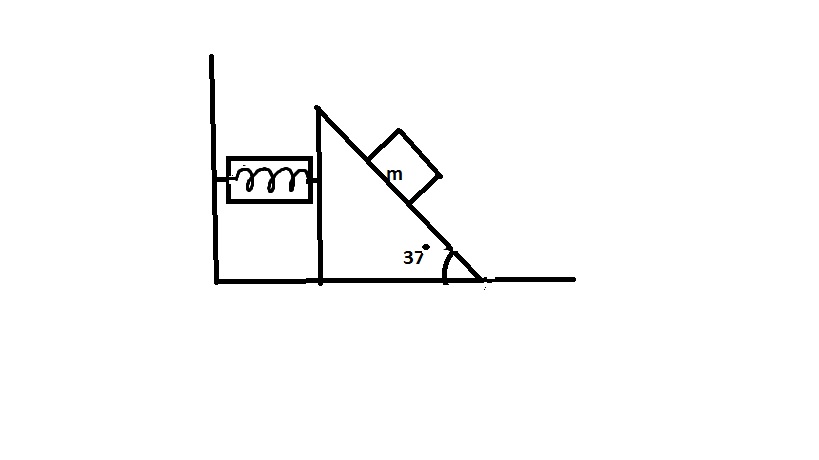

Find the reading of te spring balance as shown n the arrangemnt. Given m=2.5kg. Assume all surfaces of contact are smooth. g=10m/s^2, ang of inclination= 37 degrees

4 years ago

Answers : (1)

Vikas TU
12279 Points

Draw the FBDs of wedge and mass m  separately.
For m mass the Normal force let N be exerted by wedge.
components of N then balancing with mg forces are = >
N = mgcos37

Wedge FBD->
kx = Ncos37
put N value from m block diagram we get,
kx = (mgcos37)*cos37 = > 16mg/25
x = 16mg/25k would be the final compression in the spring.

4 years ago
