Mechanics> Fig. shows the solid rod considered in Se...

Fig. shows the solid rod considered in Section 9-3 (see also Fig.) divided into an arbitrary number N of pieces (a) What is the mass m_n of each piece? (b) Show that the distance of each piece from the axis of rotation can be written

Radhika Batra , 11 Years ago

Grade 11

1 Answers

Kevin Nash

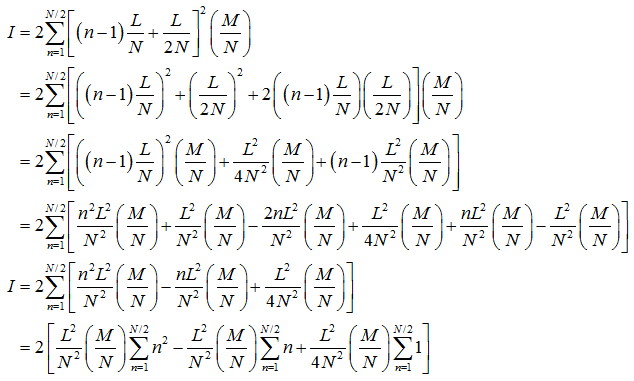

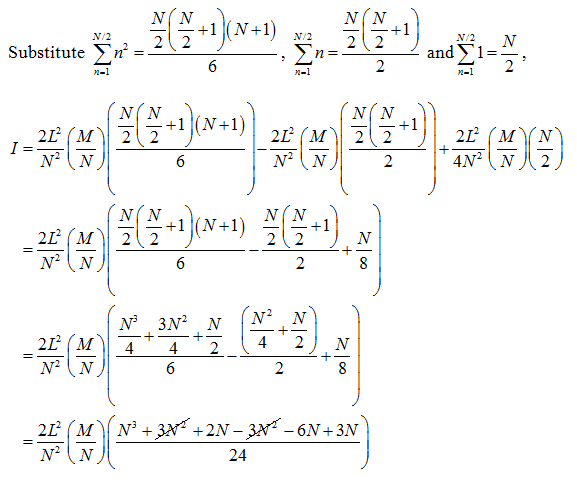

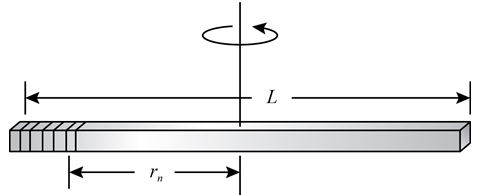

The figure below shows the rod rotating about the axis passing from the center and perpendicular to the length. The rod is divided into N pieces:

Last Activity: 11 Years ago
