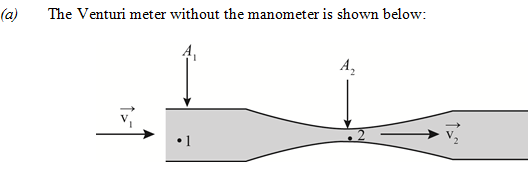

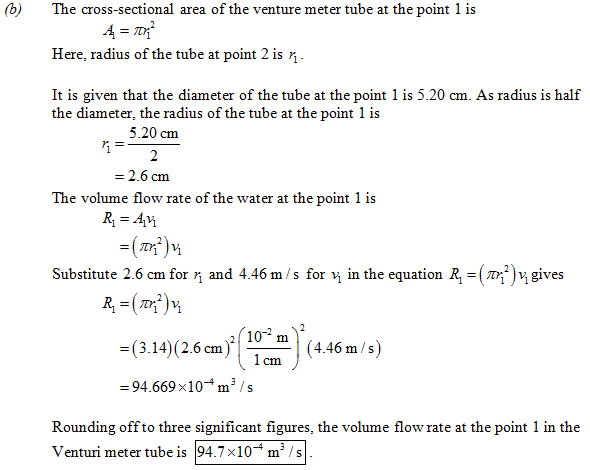

Consider the Venturi meter of Fig. 16-8, containing water, without the manometer. Let A 1 =4.75A 2 . Suppose that the pressure at point 1 is 2.12 atm. (a) Compute the values of v 1 at point 2 equal to zero. (b) Compute the corresponding volume flow rate if the diameter at point 1 is 5.20 cm. The phenomenon at point 2 when p 2 falls to nearly is zero is known as cavitation. The water vaporizes into small bubbles.

Consider the Venturi meter of Fig. 16-8, containing water, without the manometer. Let A1 =4.75A2. Suppose that the pressure at point 1 is 2.12 atm. (a) Compute the values of v1 at point 2 equal to zero. (b) Compute the corresponding volume flow rate if the diameter at point 1 is 5.20 cm. The phenomenon at point 2 when p2 falls to nearly is zero is known as cavitation. The water vaporizes into small bubbles.

Grade:11

1 Answers

Kevin Nash
askIITians Faculty 332 Points
8 years ago
