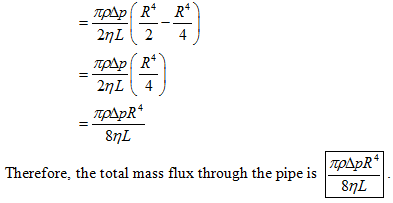

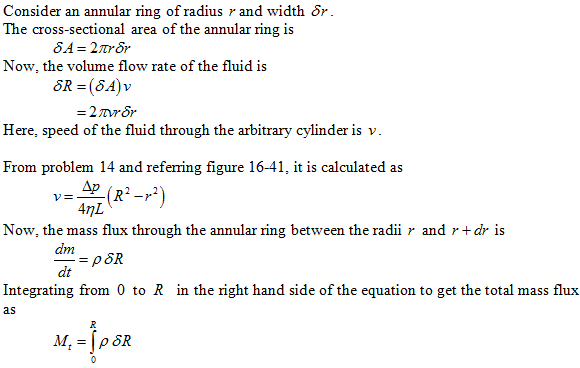

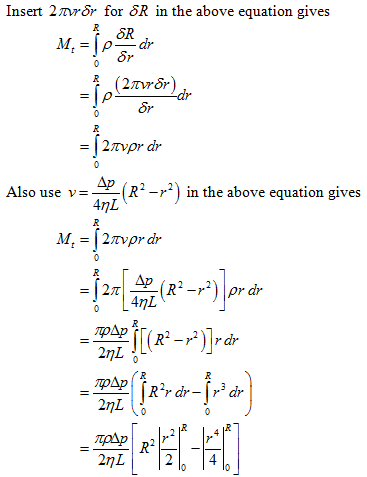

Consider once again the fluid flowing through thee pipe described in Problem 14 and illustrated in Fig. 16-41. Find an expression for the mass flux through the annular ring between radii r and r + dr; then integrate this result to find the total mass flux through the pipe, thereby verifying Eq. 16-20.

Consider once again the fluid flowing through thee pipe described in Problem 14 and illustrated in Fig. 16-41. Find an expression for the mass flux through the annular ring between radii r and r + dr; then integrate this result to find the total mass flux through the pipe, thereby verifying Eq. 16-20.

Grade:11

1 Answers

Kevin Nash
askIITians Faculty 332 Points
8 years ago
