Grade 11Mechanics

can anyone please help me to solve this sum ..

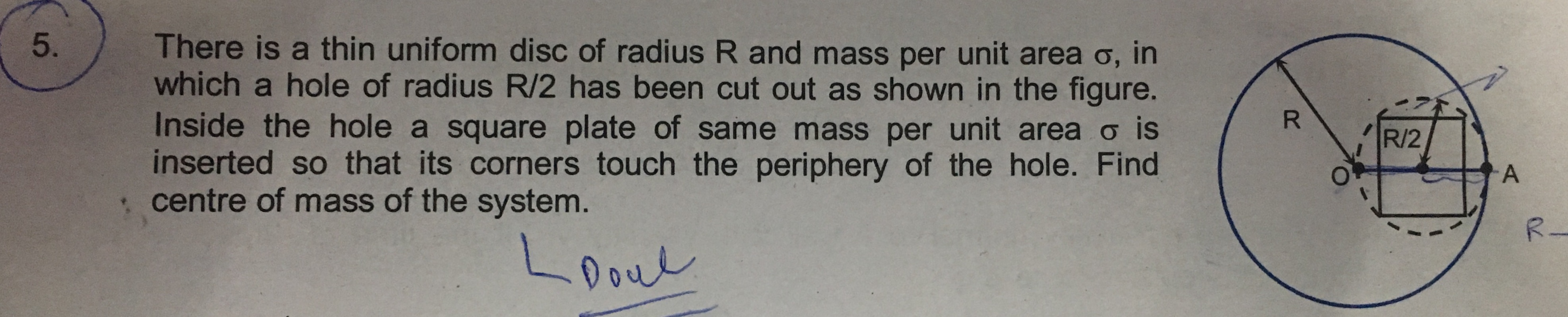

There is a thin uniform disc of radius R and mass per unit area σ, in which a hole of radius R/2 has been cut out as shown in the figure. Inside the hole a square plate of same mass per unit area σ is inserted so that its corners touch the periphery of the hole. Find the centre of mass of the system .

Question image for can anyone please help me to solve this sum .. Th
Profile image of Samriddha Majumdar
7 Years agoGrade 11
Answers icon

1 Answer

Profile image of RHYTHM KAUSHAL
5 Years ago
dear student,

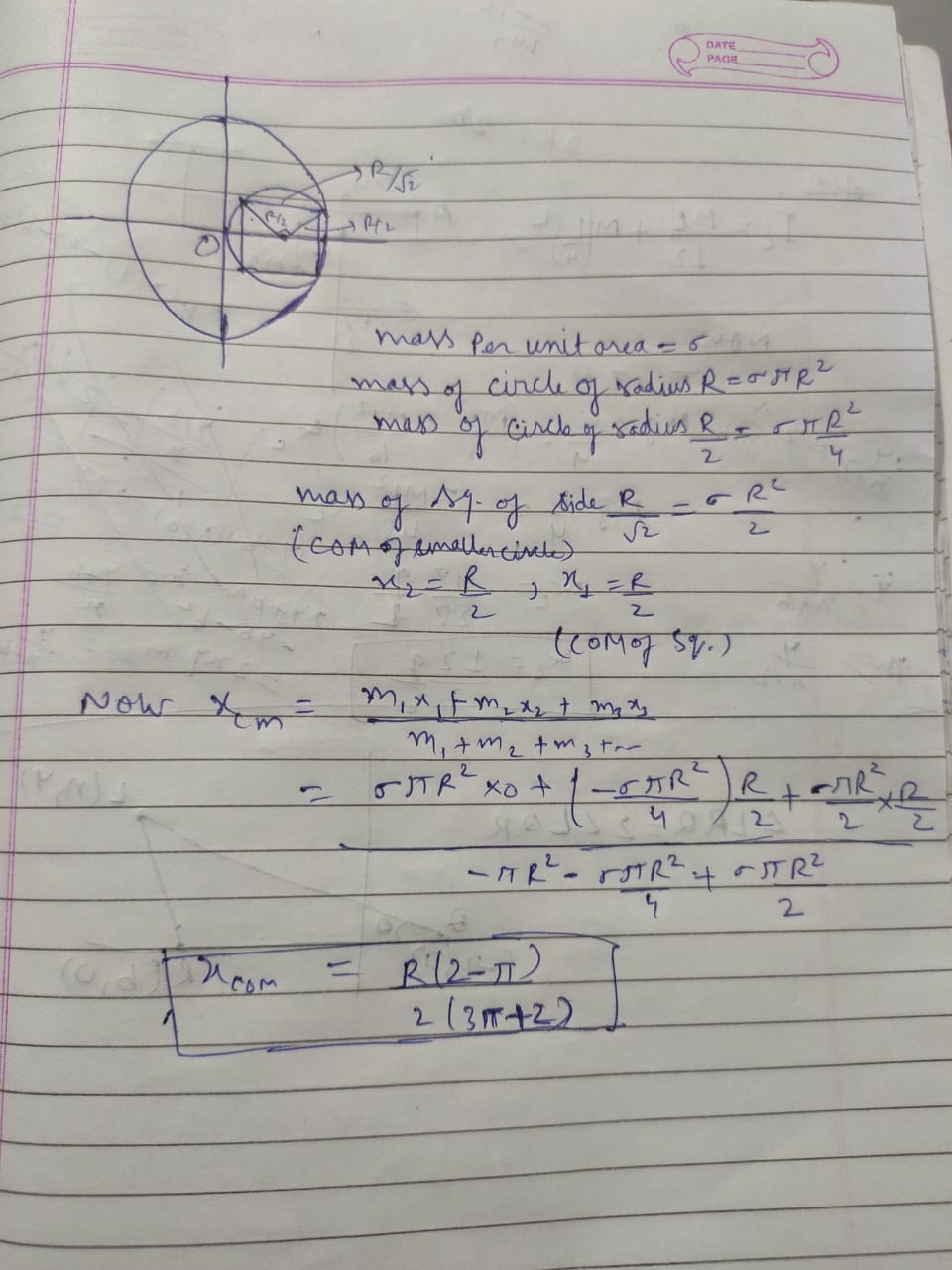

follow the attached answer for center of mass of system,
611-61_WhatsApp Image 2020-07-16 at 18.43.19.jpeg
thank you.
