An incompressible fluid flows through a horizontal pipe. At one point in the pipe the pressure in the fluid is p1. Further down the pipe the pressure is p 2 > p 1 . What can be concluded about the cross-sectional areas of the pipe A 1 at point 1 and A 2 at point 2?

An incompressible fluid flows through a horizontal pipe. At one point in the pipe the pressure in the fluid is p1. Further down the pipe the pressure is p2 > p1 . What can be concluded about the cross-sectional areas of the pipe A1 at point 1 and A2 at point 2?

Grade:10

1 Answers

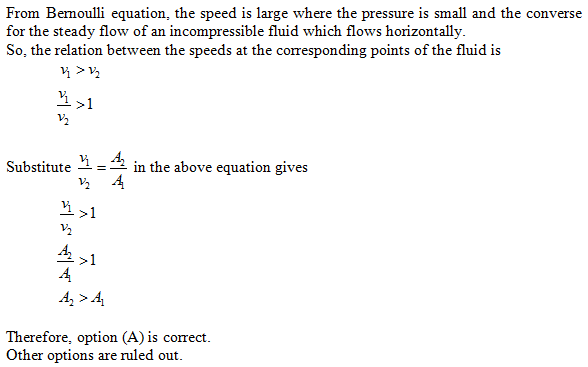

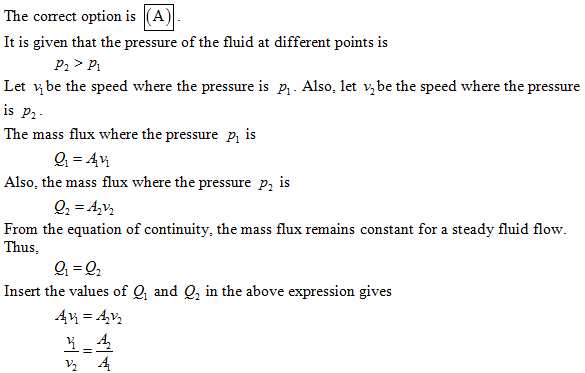

Jitender Pal
askIITians Faculty 365 Points
8 years ago
