A uniform slender rod of length L cross-sectional area A and Young`s modulus Y is acted upon by forces as shown in figure. Find elongation of rod.

Question image for A uniform slender rod of length L cross-sectional
Profile image of sayak maji
9 Years agoGrade 11
Answers icon

2 Answers

Profile image of Dikshant Savant
9 Years ago

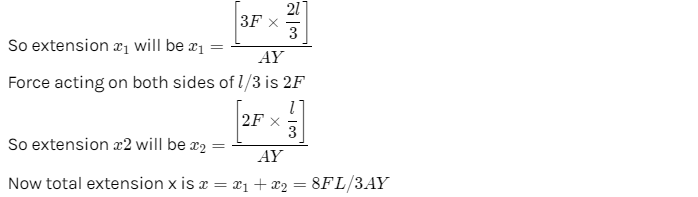

Divide the rod into 2 parts of length 2l/3 and l/3 where the force F is acting. Now solve the problem for the 2 rods separately.Force acting on both sides of 2l/3 is 3F. so extention x1 will be x1= (3F.2l/3)/ AY.Force acting on both sides of l/3 is 2F. So extension x2 will be x2 = (2F.l/3)/AYNow total extenion x is x= x1+x2 = 8FL/3AY
Profile image of Yash Chourasiya
6 Years ago
Dear Student

Divide the rod into 2 parts of length2l/mandl/mwhere the force F is acting.
Now solve the problem for the 2 rods separately.
Force acting on both sides of2l/3is3F.

I hope this answer will help you.
Thanks & Regards
Yash Chourasiya
