Grade 12Mechanics

A tube of radius R and length L is conneted in series with another tube of radius R/2 and length L/8. If pressure across tubes taken togethr is P, the pressure across the two tubes separately are?

Profile image of rutu
9 Years agoGrade 12
Answers icon

1 Answer

Profile image of Rituraj Tiwari
5 Years ago

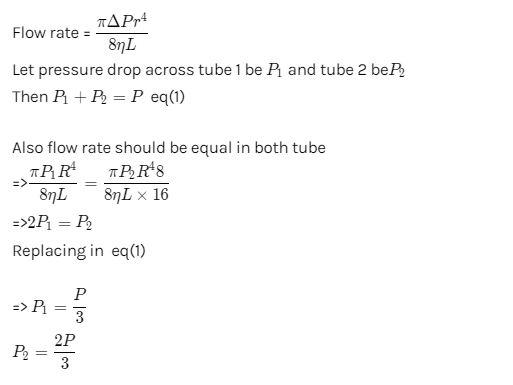

657-181_Annotation 2020-08-11 210121.png
