Grade 11Mechanics

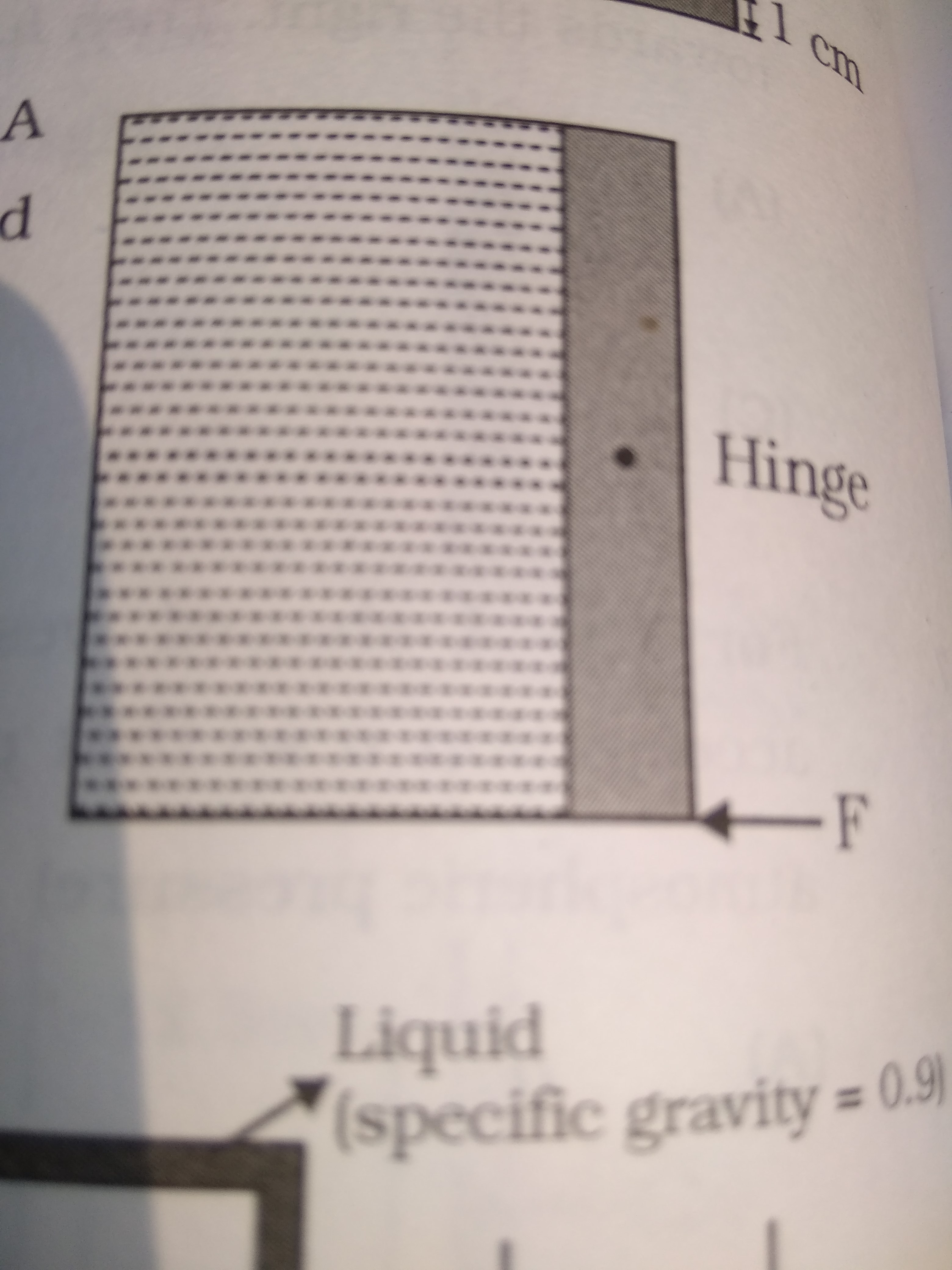

A square gate of size 1m x 1m is hinged at its midpoint and is free to rotate point a liquid of density p (roh) fills the space to the left of the gate. find the force f required to hold the liquid stationary is

Question image for A square gate of size 1m x 1m is hinged at its mi
Profile image of Rankush
7 Years agoGrade 11
Answers icon

1 Answer

Profile image of Rituraj Tiwari
5 Years ago

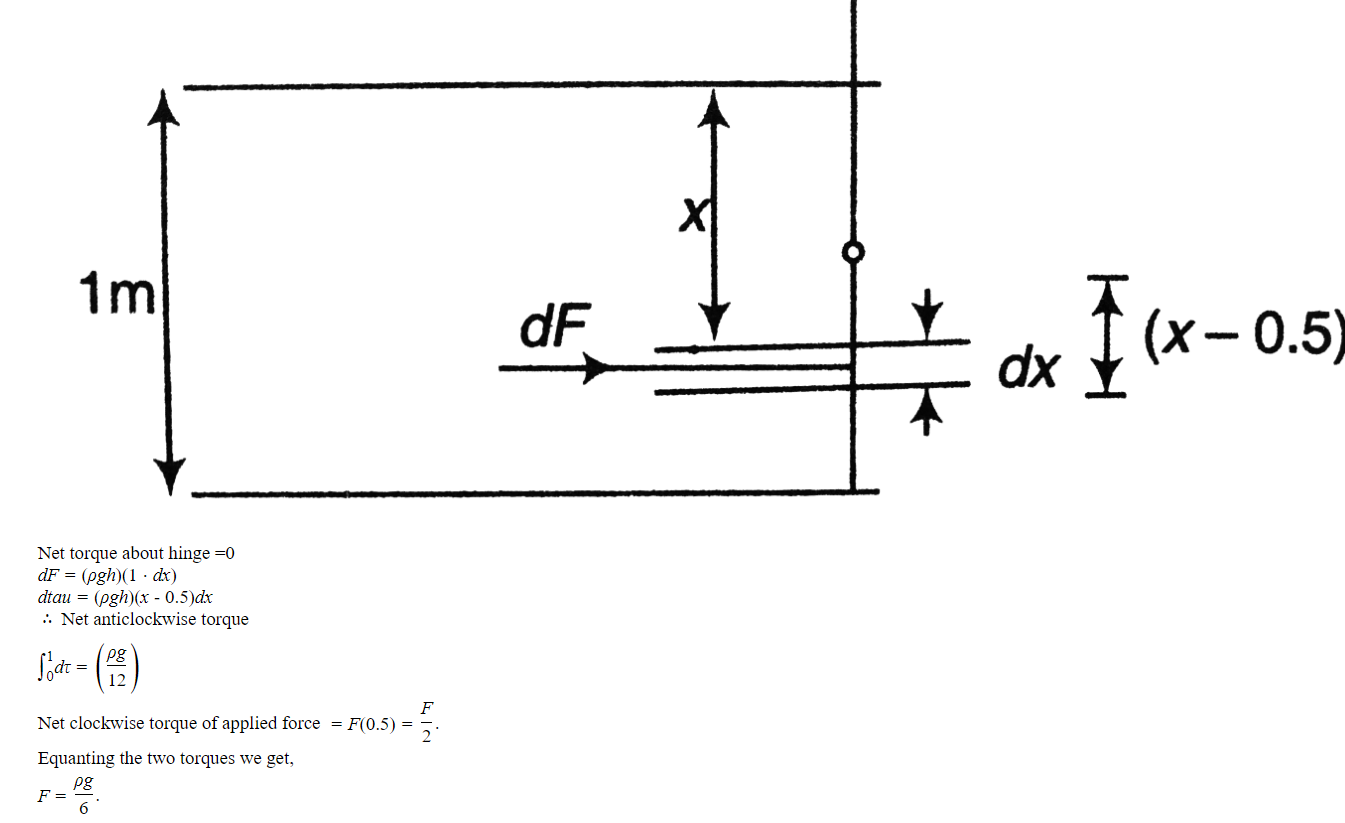

657-1003_Annotation 2020-08-28 220015.png
