Grade 12th passMechanics

A square carrom board of side 4 ft each has the queen at the centre. the queen when hit by the striker moves to the front edge rebounds and goes in the hole behind the striking line. find the displacement of the queen from the centre to the front edge and from the front edge to the hole.
plz solve this and oblige..

Profile image of mansi bansal
9 Years agoGrade 12th pass
Answers icon

1 Answer

Profile image of Rituraj Tiwari
5 Years ago

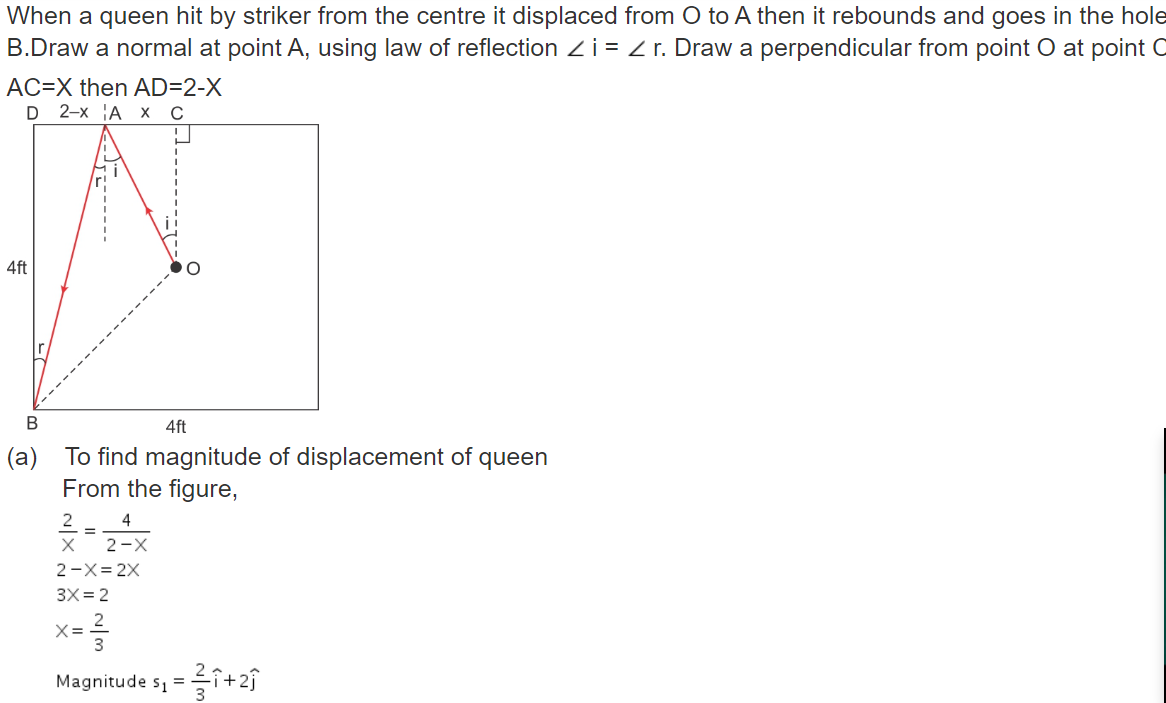

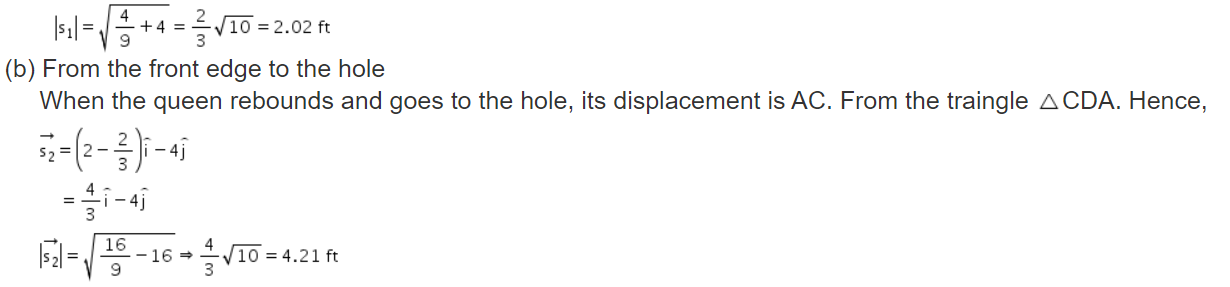

657-594_Annotation 2020-08-07 153954.png657-1431_Annotation 2020-08-07 154026.png
