Grade 10Mechanics

A source of light S is located at a distance of 8 cm from a plane mirror. The reflected ray S' is detected 2 cm from the mirror at a vertical displacement of 12 cm. The point of reflection is at a distance of (Figure is not drawn to scale)

Profile image of swarup
7 Years agoGrade 10
Answers icon

1 Answer

Profile image of Rituraj Tiwari
5 Years ago

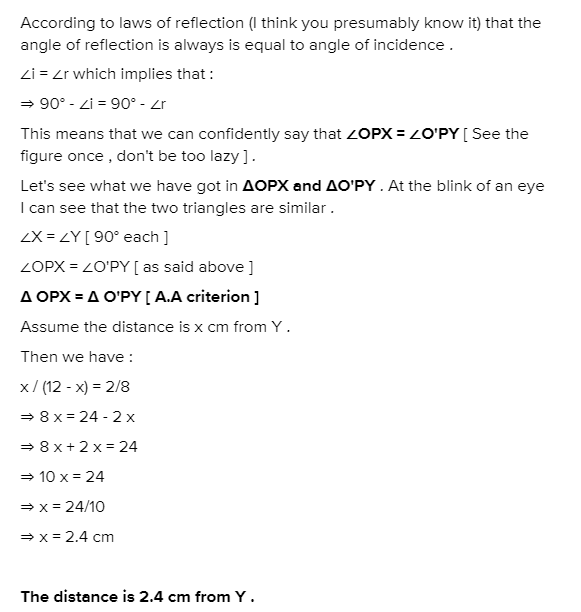

657-624_Annotation 2020-07-20 203136.png
