Grade 11Mechanics

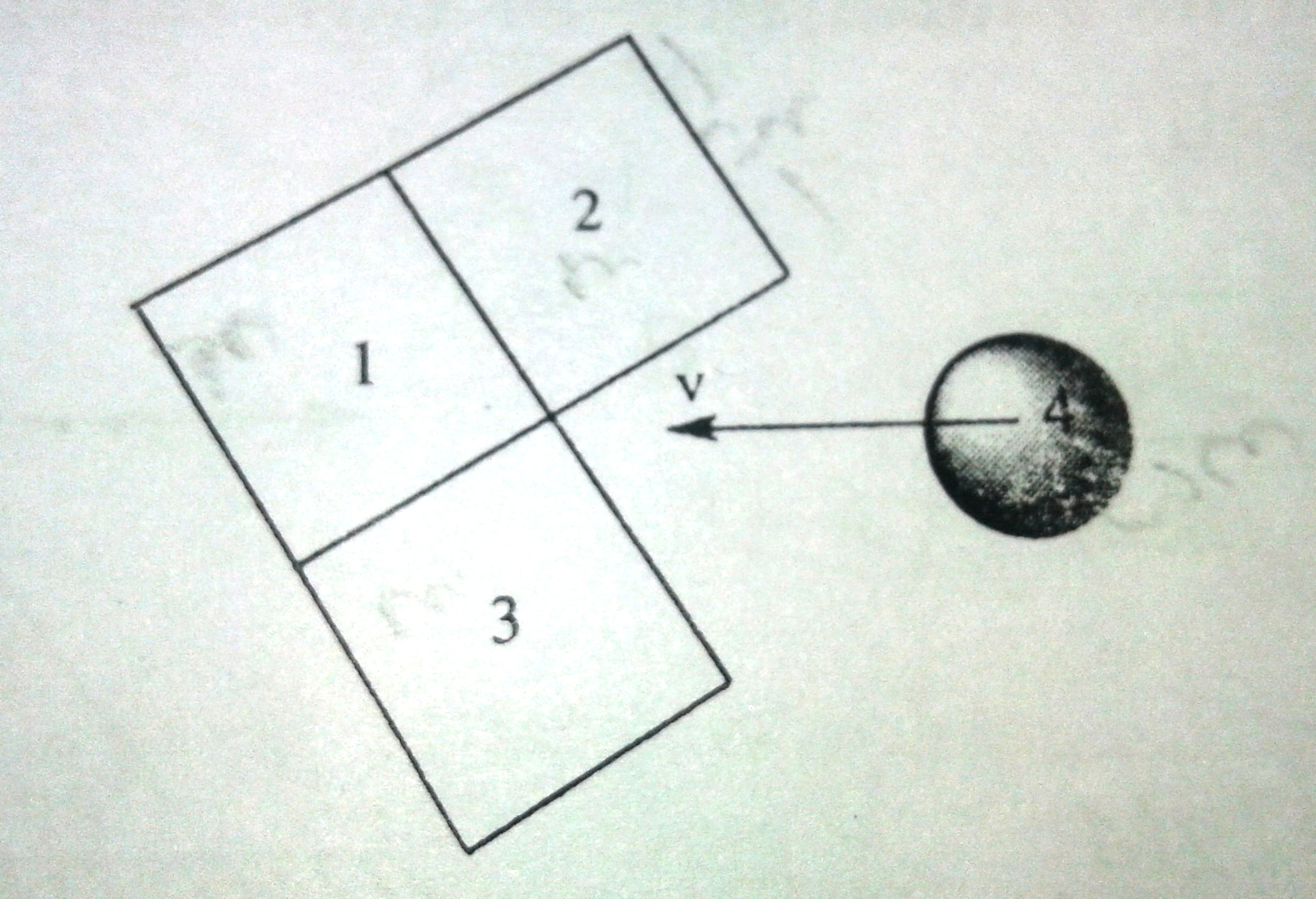

A smooth sphere impinges at a velocity v on a group of three smoothe blocks resting on a smooth horizontal surface as shown in the figure. the mass of each block is equal to the mass od the washer. The diameter of the washer and its height are equal to the edge of the block. determine the velocity of the blocks after the impact?

Question image for A smooth sphere impinges at a velocity v on a gro
Profile image of Eshwar Sai Srinivas
9 Years agoGrade 11
Answers icon

1 Answer

Profile image of Rituraj Tiwari
5 Years ago

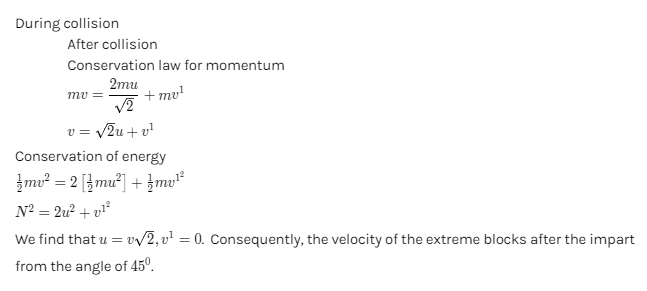

657-1350_Annotation 2020-08-19 101647.png
