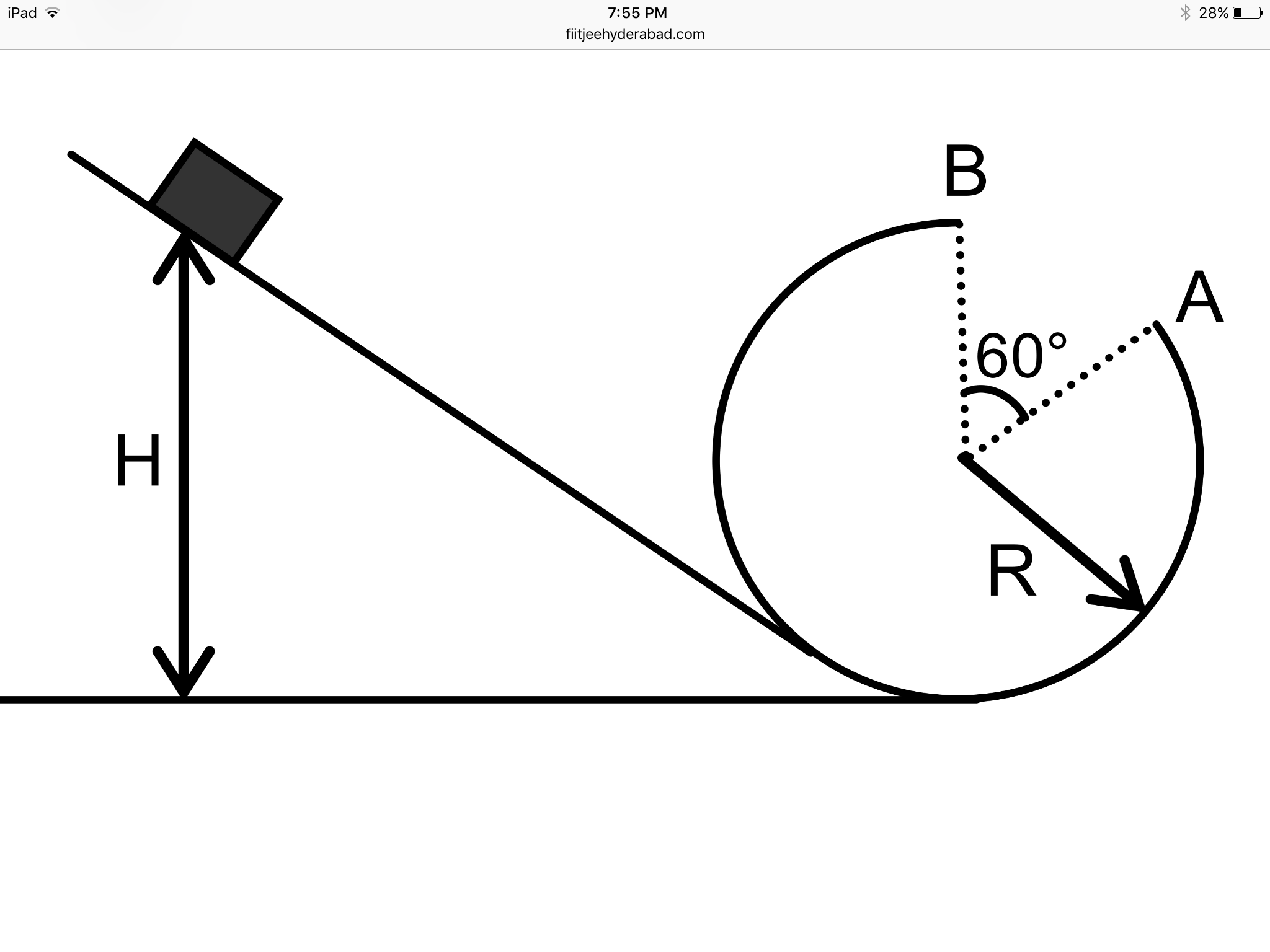

A small particle slides from height H = 45 cm as shown and then loops inside the vertical loop of radius R from where a section of angle = 60° has been removed. If R = (1/N) meter, such that after losing contact at A and flying through the air, the particle will reach at the point B. Find N. Neglect friction everywhere.

Chaitanya Bisht , 7 Years ago
Grade 12
anser 1 Answers
Srujith
The particle at position A has velocity
MgH=Mg(R+R/2)+vA^2
VA=√2gR,vA is the velocity at A
From point A to B
1/2mVa^2=mgR/2+1/2mvb^2(VB represent velocity at B
Vb=√gr to complete circle
Substituting all values we get
H=5R/2=>1/R=5/2H
