Grade 11Mechanics

A right triangular plate ABC of mass m is free to rotate in the vertical plane about a fixed horizontal axis through A. It is supported by a string such that the side AB is horizontal. The reaction at the support A in equilibrium is.

Profile image of RAUSHAN SHARMA
8 Years agoGrade 11
Answers icon

1 Answer

Profile image of Rituraj Tiwari
5 Years ago

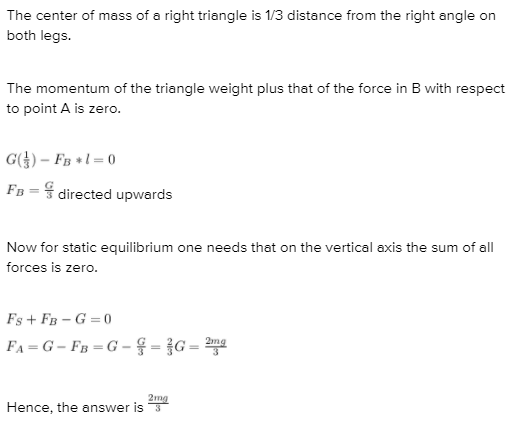

657-1596_Annotation 2020-08-18 101937.png
