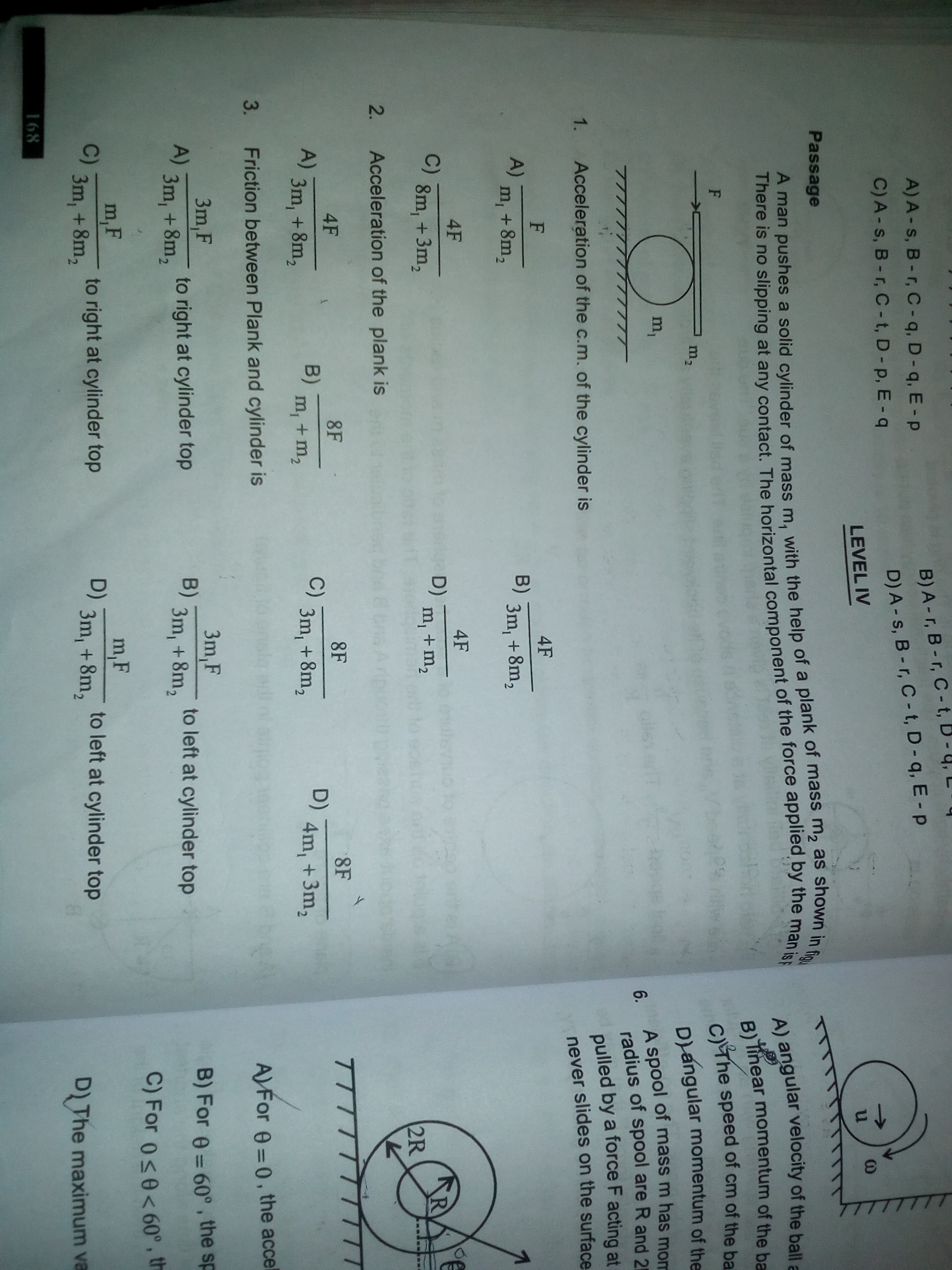

A man pushes a cylinder of mass m1 and with help of plank m2 there is no slipping as in figure in attachment horizontal force is F 1)acc of cm of cylinder is? 2)F riction between plank and cylinder 3)

A man pushes a cylinder of mass m1 and with help of plank m2 there is no slipping as in figure in attachment horizontal force is F
1)acc of cm of cylinder is?
2)F riction between plank and cylinder
3)

Question Image
Grade:

2 Answers

Arun
25750 Points
4 years ago
- Now draw the FBD of two bodies.

The cylinder in the bottom will have the following set of forces

f1=force of friction between the two bodies and is towards right for the cylinder and towards left for the plank.

f2=force of friction between the ground and the cylinder and is towards left.

F=applied horizontal force on the plank

a1= Acceleration of the plank towards the right

a= Acc of the cylinder towards right

ß= Angular Acc of the cylinder

Then the eqns of motion are

F-f1=M2 a1.........................(1)

f1 - f2=M1 a........................(2)

(f1+f2)r=Iβ...........................(3) (where I= momont of inertia= 1/2 M2 r²)

And the conditions of non slleeping are

a1=a+ βr..................(4)(At the top cotact of two bodies)

a2=βr..............(5)(At the contact of the cylinder and the ground)

Solving these Eqsns we get

a=4F/(8M2+3M1)

a1=8F/(8M2+3M1)
Vikas TU
14149 Points
4 years ago
Dear student
Please follow the followuing Link for correct explanation
Hope this helps
Good Luck
