A liquid flows through a horizontal pipe whose inner radius is 2.52 cm. The pipe bends upward through a height of 11.5 m where it widens and joins another horizontal pipe of inner radius 6.14 cm. What must the volume flux be if the pressure in the two horizontal pipes is the same?

Question

Navjyot Kalra · Answer

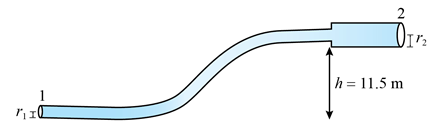

It is given that the radius of the pipe increases as it bends through a height. The corresponding figure of the pipe is shown below:
