Grade 12Mechanics

A heavy rod of length L and weight W is suspended horizontally by two vertical ropes as shown.The first rope is attached to the left end of the rod while the second rope is attached a distance L/4 from right end .The tension in the second rope is
[the diagram is attached]
The answer is (2/3)W but how??????

Question image for ​ A heavy rod of length L and weight W is suspend
Profile image of Sarvesh
7 Years agoGrade 12
Answers icon

1 Answer

Profile image of Rituraj Tiwari
5 Years ago

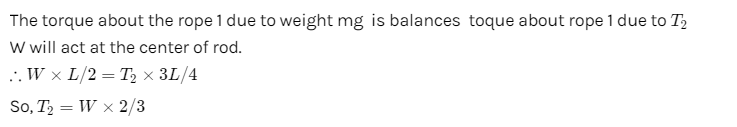

657-899_Annotation 2020-07-24 154412.png
