A cylinder of weight W is placed in a V-block as shown in figure .If fi is the angle of friction between block and cylinder , find the axial force required nustjto move the cylinder . Assume fi less than alpha.

Question

Arun · Answer

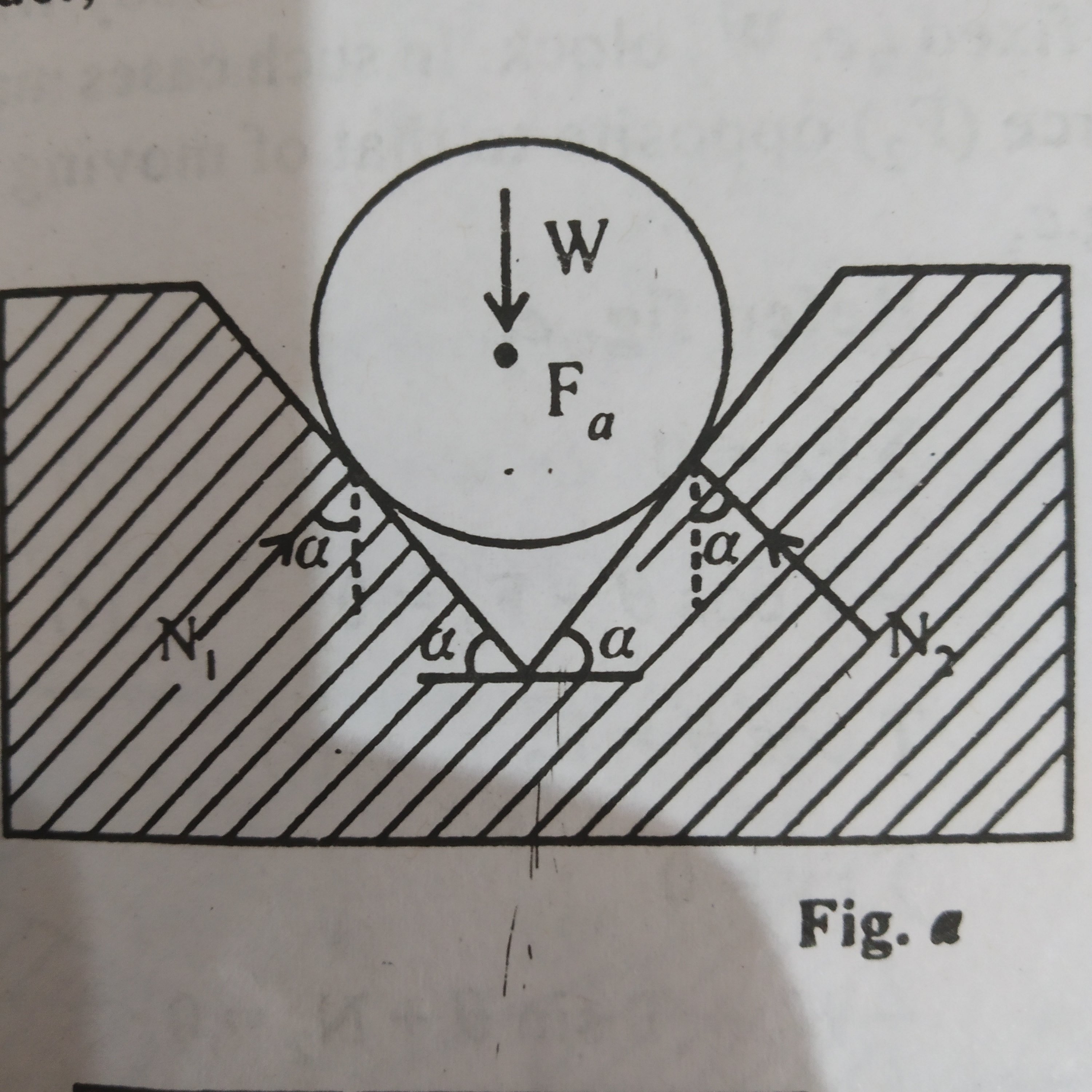

Figure shows how the normal forces are acting on the contact points of cylinder and inclined wall. After resolving the force we find, 2×N×sin((180 – 2@)/2)= W or N = W sec @ /2 Hence on each wall, normal reaction force is W* sec@ /2
