Grade upto college level Mechanics

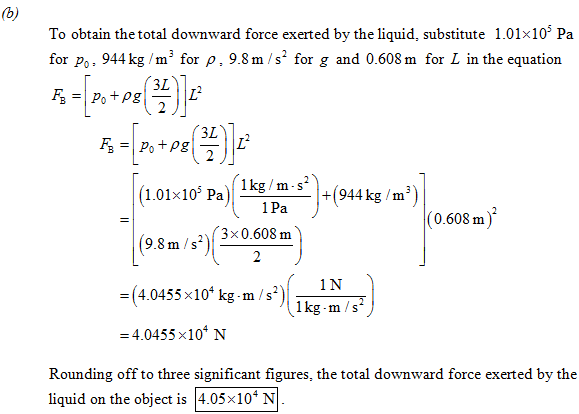

A cubic object of dimensions L = 0.608 m on a side and weight W = 4450 N in a vacuum is suspended by a wire in an open tank of liquid of density p = 944 kg/m³, as in Fig. 15-19. (a) Find the total downward force exerted by the liquid and the atmosphere on the top of the object. (b) Find the total upward force on the bottom of the object. (c) Find the tension in the wire. (d) Calculate the buoyant force on the object using Archimedes' principle. What relation exists among all these quantities?

Amit Saxena

11 Years agoGrade upto college level

1 Answer

Navjyot Kalra

11 Years ago

Three identical balls are placed on a frictionless horizontal surface touching each other. They stick to each other because of adhesive. Another ball of same radius and mass m is placed over the void created by the three balls. Find the forces applied by the balls kept on the floor to each other if the system remains in equilibrium.

mechanics

1 Answer Available

Last Activity: 9 Months ago

A car loaded with water having total mass 1000 kg moves on a straight horizontal Road starting from rest under the action of a force of 100 Newton. The water spills throw a small hole in the bottom at a rate of 0.1 KG per second the velocity of cart after 300 seconds is nearly.

11
21
31
41

mechanics

1 Answer Available

Last Activity: 10 Months ago

A metal strip clamped at one end vibrates with a frequency of 20 Hz and amplitude of 5 mm
at the free end, where a small mass of 2 g is positioned. determine
(i) The velocity of the end when passing through the zero position
(ii) The acceleration at maximum displacement
(iii) The maximum kinetic energy of the mass

mechanics

2 Answers Available

Last Activity: 3 Years ago

An object of mass m = 0.25 kg oscillates in a fluid at the end of a vertical spring of spring
constant kH = 85 N/m, see Fig.1. The effect of the fluid resistance is governed by the
damping constant b = 0.07kg/s.
(i) Find the period of the damped oscillation.
(ii) By what percentage does the amplitude of the oscillation decrease in each cycle?

mechanics

1 Answer Available

Last Activity: 3 Years ago

If a=x² find the displacement at t =3sec if body velocity at t= 0 sec is 0

mechanics

1 Answer Available

Last Activity: 3 Years ago
