Grade 12Magnetism

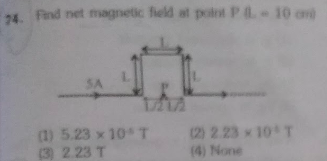

Please help to get answer in the image. Magnetic field at point p ?

Question image for Please help to get answer in the image. Magnetic

Mohan Kosireddy

7 Years agoGrade 12

1 Answer

Khimraj

7 Years ago

Due to symmetry magnetic field at point p will be only due upper wire part of length L

So B = (u_oI/4 $\pi$ a)(sin $\Theta _{1}$ + sin $\Theta _{2}$ )

B = (10^-7*5/0.1)( $1/\sqrt{5} + 1/\sqrt{5}$ )

B = 8.92*10^-6 T

Hope it clears.
