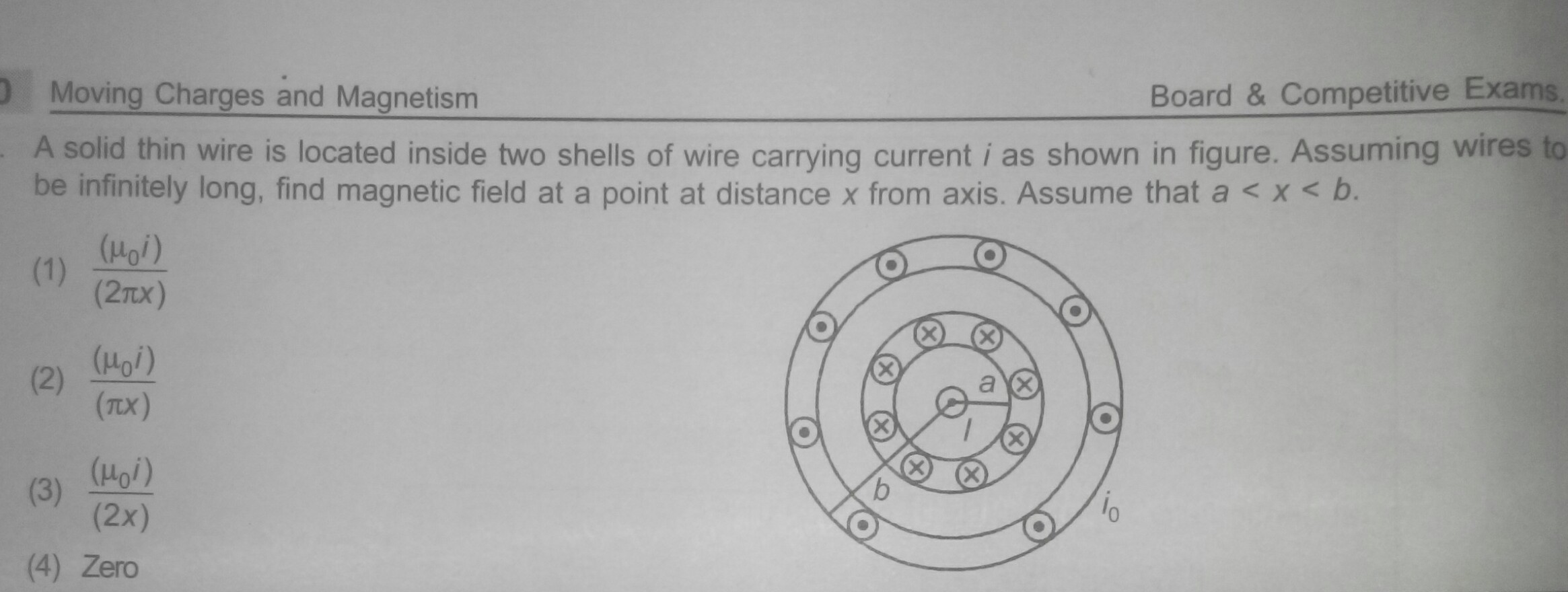

A solid thin wire is located inside two shells of wire carring current I as shown in figure.assuming wire to be infinitely long, find magnetic fields at a point at distance x from axis.assume that ab.

A solid thin wire is located inside two shells of wire carring current I as shown in figure.assuming wire to be infinitely long, find magnetic fields at a point at distance x from axis.assume that ab.

Question Image
Grade:12

1 Answers

Eshan
askIITians Faculty 2095 Points
4 years ago

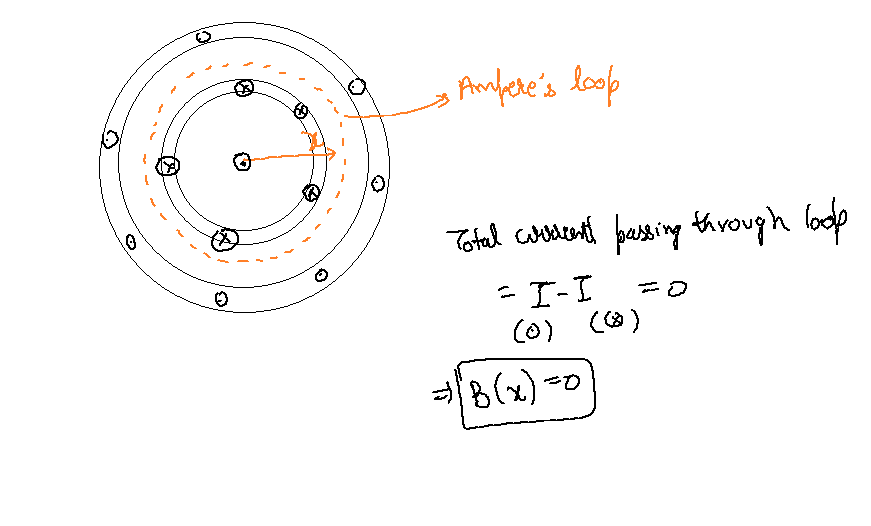

Due to wire along the central axis, I is coming out of the plane. Due to inner shell, current I is going into the plane. These two are passing through the amperian loop.
