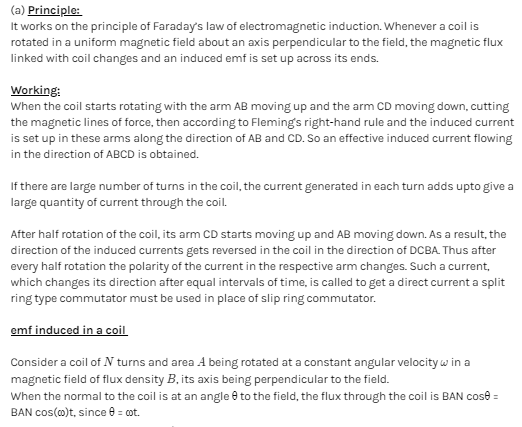

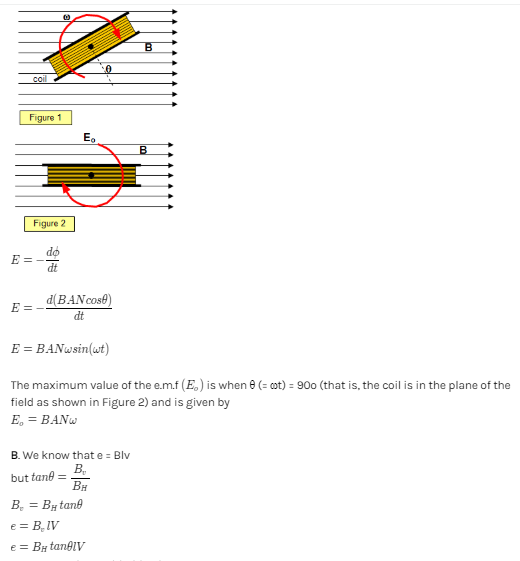

State the working of a.c. generator with the help of a labelled diagram. The coil of an a.c. generator having N turns, each of area A, is rotated with a constant angular velocity ro. Deduce the expression for the alternating e.m.f. generated in the coil. What is the source of energy generation in this device ?

moment of inertia of a equilateral triangle about an axis passing through centre and perppendicular to the plane

. Because of the rotation of the earth, a plumb bob may not hang exactly along the direction of
the earth’s gravitational pull (its weight) but deviates slightly from this direction. Calculate the
deviation (a) at 40 latitude, (b) at the poles, and (c) at the equator

The length of a massless rod is measured using vernier callipers having 10 vernier scale divisions and least count of 0.1 mm. Two masses 1.00 ± 0.01 kg and 4.00 ± 0.02 kg are attached to its ends. If reading of vernier scale is 5 divisions coinciding with 1.3 cm, what is the % error in locating centre of mass from lighter mass

A block is kept on x-y plane at a point (2m,3m). It is pushed with a force of magnitude 10 Ntowards point (5m,7m). The force can be represented as?
