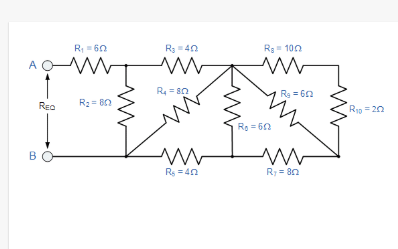

r equivalent of the ckt b/w A and B .r equivalent of the ckt b/w A and B .

r equivalent of the ckt b/w A and B .r equivalent of the ckt b/w A and B .

Question Image
Grade:11

1 Answers

Vikas TU
14149 Points
4 years ago
Dear student
Here the resistances is in series and parallel.
So , strt from backside
Series Req = R1 + R2
Parallel Req = R1R2 /R1+ R2
On solving last one you will get Req as 4ohm
After reaching to 2nd one Req is same and = 4 ohm
Req b/n A and B = 10 ohm
